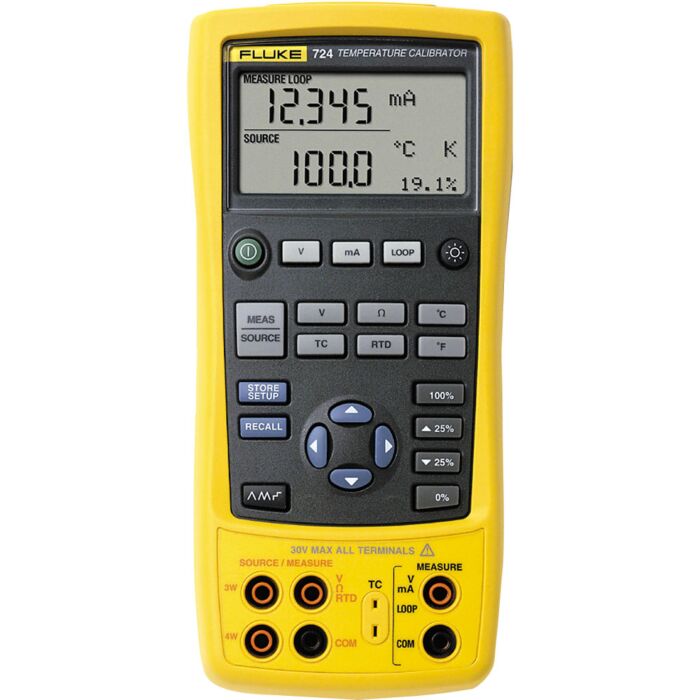

Fluke 724 Temperature Calibrator

Order # 724T | Mfg # 1553041

$3,503.99

In stock

Ships Free Over $100

Check Out Transcat's Fluke Temperature Calibrator Selection Guide!

Also Available:

Rental

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

SAVE OVER $185! FREE Tools include:

Fluke Tpak Tool Hanger
Soft Carrying Case
J,K,T,E Mini T/C Lead Set
Pack of 128 Self Laminating Green Calibration Labels

View the Fluke 724 with FREE TOOLS!

Fluke 724T Overview

With a single tool, you can now measure and source 10 thermocouple types and 7 RTD types, plus volts and ohms. The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power. The dual line measure/source display lets you source temperature and view loop current at the same time.

Now you can carry one tool to expertly test all the temperature sensors and transmitters in your plant.
The Fluke 724 is the master’s answer to temperature calibration. The Fluke 724 can measure and source 10 thermocouple types and 7 RTD types, plus volts and ohms.
The Fluke 724 even handles high-speed pulsed RTD circuits and provides loop power.
The dual line measure/source display lets you source temperature and view loop current at the same time.
With its simple, “no menus controls, the Fluke 724 is easy to operate, too.

Fluke 724T Highlights

Measure & source 10 thermocouple types and 7 RTD types, plus volts & ohms
Handles high speed pulsed RTD circuits and provides loop power
The dual line measure/source display lets you source temperature and view loop current at the same time
And with its simple, “no menus” controls, the Fluke 724 is easy to operate, too

Each Fluke 724T Includes

Fluke 724
TL75 Test Leads
AC70A Test Clips
One pair of stackable test leads
Product Overview Manual in 14 different languages
User Manual on CD-Rom

Technical Resources

Fluke 718 / 719 / 724 / 725 / 726 Safety Sheet
Fluke 724 Temperature Calibrator - Technical Data
Fluke 724 Temperature Calibrator - User's Manual
Fluke 724 Temperature Calibrator - User's Manual Supplement
Fluke 724 Temperature Calibrator - Calibration Manual

Specifications

Measurement Accuracy
Voltage DC	30.000 V	0.02% + 2 counts (upper display)
	20.000 V	0.02% + 2 counts (lower display)
	100.00 mV	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025% + 1 count (via TC connector)
Current DC	24.000 mA	0.02% + 2 counts
Resistance	0.0 to 400.0 Ω	0.1 Ω (4-wire), 0.15 Ω (2- and 3-wire)
	401 to 1500 Ω	0.5 Ω (4-wire), 1 Ω (2- and 3-wire)
	1500 to 3200 Ω	1 Ω (4-wire), 1.5 Ω (2- and 3-wire)
Source Accuracy
Voltage DC	100.00 mV	0.02% + 2 counts
	10.000 V	0.02% + 2 counts
	-10.00 mV to 75.00 mV	0.025 % + 1 count (via TC connector)
Resistance	15.0 to 400.0 Ω	0.15 Ω (exc. current 0.15 to 0.5 mA), 0.1 Ω (exc. current 0.5 to 2 mA)
	401 to 1500 Ω	0.5 Ω (excitation current 0.05 to 0.8 mA)
	1500 to 3200 Ω	1 Ω (excitation current 0.05 to 0.4 mA)
RTDs and Thermocouples
Measure accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.8°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, 0.1°F B, R, S: 1°C, 1°F
	XK	0.6°C
	BP	1.2°C
Source accuracy	NI-120	0.2°C
	PT-100 (385)	0.33°C
	PT-100 (393)	0.3°C
	PT-100 (JIS)	0.3°C
	PT-200 (385)	0.2°C
	PT-500 (385)	0.3°C
	PT-1000 (385)	0.2°C
	Resolution	0.1°C
	Accuracy stated for 4-wire measurement.
	J	0.7°C
	K	0.8°C
	T	0.8°C
	E	0.7°C
	R	1.4°C
	S	1.5°C
	B	1.4°C
	L	0.7°C
	U	0.75°C
	N	0.9°C
	Resolution	J, K, T, E, L, N, U: 0.1°C, B, R, S: 1°C
	XK	0.6°C
	BP	1.2°C
Specifications
Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
Ramp functions	Ramps	Slow ramp, Fast ramp, 25% step-ramp
Loop power function	Voltage	24 V
	Accuracy	10%
	Maximum current	22 mA, short circuit protected
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
Step functions	Steps	25% of range, 100% of range
Environmental Specifications
Operating temperature	-10°C to 55°C
Storage temperature	-20°C to 71°C
Humidity (without condensation)	90%	10°C to 30°C
	75%	30°C to 40°C
	45%	40°C to 50°C
	35%	50°C to 55°C
Safety Specifications
Safety rating	CSA C22.2 No. 1010.1:1992
EMC	EN50082-1:1992 and EN55022:1994 Class B
Mechanical and General Specifications
Size	96 x 200 x 47 mm
Weight	650 g
Batteries	Four AA alkaline batteries
Warranty	Three years
Battery life	25 hours typical
Shock and vibration	Random, 2 G, 5-500 Hz

Visit our Fluke Temperature Calibrator Selection Guide
