The TLPV-based kits help standardize CAT III 1500 V solar tools with test leads that carry that same CAT III 1500 V rating. Compared with existing PVLEAD-based kits, the key benefit is consistent CAT III 1500 V alignment between the test tool and the test lead. TLPV1 serves the same measurement function as PVLEAD1, and TLPV2 serves the same measurement function as PVLEAD3.
This kit adds the Fluke Irradiance Meter to the 283 FC/PV electrical test platform, giving users both high-voltage electrical troubleshooting capability and the key environmental measurements needed for broader PV assessment. It is the strongest fit for commissioning, troubleshooting, and performance verification.
With TLPV1 and TLPV2 included, it combines electrical diagnostics, irradiance-related measurements, and a CAT III 1500 V MC4 lead solution in one more complete field kit.
- Safety Rating: CAT III 1500 V / CAT IV 1000 V rated
- Voltage Measurement: Up to 1500 V DC and 1000 V AC
- Staubli MC4 Test Leads: Allows for secure and reliable connections directly to PV modules or strings
- a283 FC Current Clamp: Safely measures current up to 60 A AC/DC in individual strings
Applications
- Utility-Scale Solar Photovoltaic (PV) Arrays
- Wind Power Systems
- Electric Railways & Transportation
- Industrial Battery Banks & Data Centers

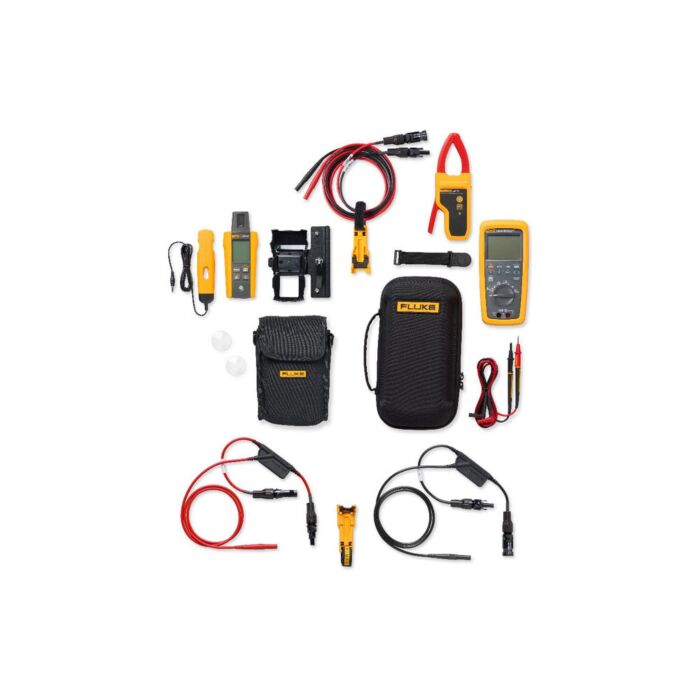

Each Unit Includes
- 283 FC Digital Multimeter
- a283 FC 60A TRMS Wireless AC/DC Current Clamp
- IRR-1 / IRR2 Solar Irradiance Meter
- Temperature Probe
- Carrying Case
- Test Leads & Accessories
- MC4 Test Leads 1500 V rated test leads
- MC4 unlocking tool
