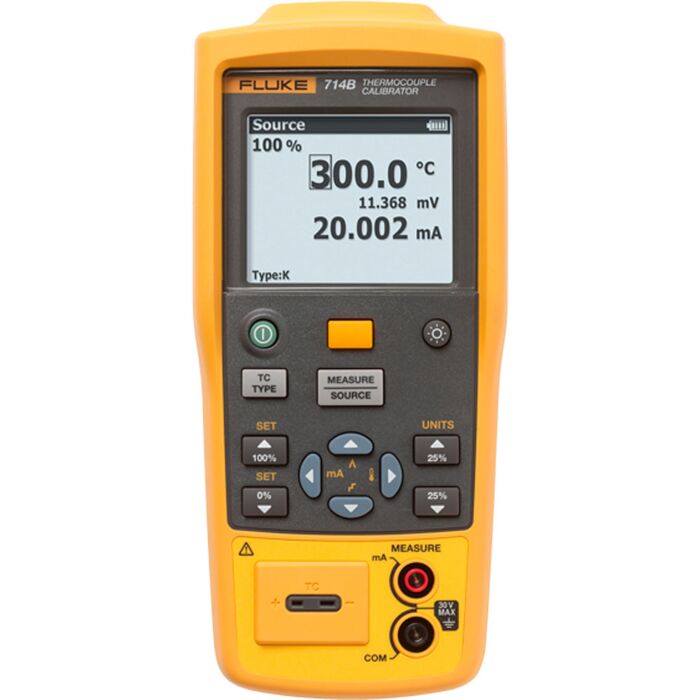

Fluke 714B for Rent, Thermocouple Calibrator

Order # 714B-RENT1 | Mfg # 714B-RENT1

For Rent

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

For the temperature calibration professional that wants a highly accurate, easy-to-use, single function thermocouple temperature calibrator the Fluke 714B is the ideal test tool.

The 714B can measure and simulate (17) different thermocouple types and millivolts
Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
Hanging tool designed in and included with every unit
Configurable 0% and 100% source settings for quick 25% linearity checks
Linear ramp and 25% step auto ramp based on 0% and 100% settings
Dual inputs and backlit display for easy interpretation of measurements
Power down settings remembered at power up for easy restart of tests
1-year and 2-year specifications and traceable certificate of calibration

Each Unit Includes

Magnetic Hanging Tool
Batteries
Manual
Traceable Calibration Certificate
Test Leads

Technical Resources

Fluke 712B / 714B Temperature Calibrators - Technical Data
Fluke 714B Thermocouple Calibrator - User's Manual
Fluke 714B Thermocouple Calibrator - User's Manual Supplement
Fluke 714B Thermocouple Calibrator - Quick Reference Guide
Fluke 714B Thermocouple Calibrator - Quick Reference Guide Supplement
Fluke 712B / 714B Temperature Calibrators - Calibration Manual
Fluke 712B / 714B Temperature Calibrators - Safety Sheet
Fluke 712B / 714B Temperature Calibrators - Safety Sheet Supplement
Fluke 712B / 714B Temperature Calibrators - Statement of Memory Volatility

Specifications

General Specifications
Maximum voltage applied between any terminal and earth ground or between any two terminals	30 V
Operating temperature	-10°C to 50°C
Storage temperature	-30°C to 60°C
Operating altitude	2,000 m
Storage altitude	12,000 m
Relative humidity (% RH operating without condensation)	Non condensing
	90% (10°C to 30°C)
	75% (30°C to 40°C)
	45% (40°C to 50°C)
	(Without condensation)
Vibration requirements	MIL-T-28800E, Class 2
Drop text requirements	1 m
IP Rating	IEC 60529: IP52
Electromagnetic environment	IEC 61326-1, Portable
Safety	IEC 61010-1, Max 30 V to earth, Pollution Degree 2
Power supply	4 AA NEDA 1.5A IEC LR6 batteries
Size (H x W x L)	52.5 x 84 x 188.5 mm
Weight	515 g
DC mA Measurement
Resolution	Range	Accuracy (% of reading + counts)
0-24 mA	0.001 mA	0.010% + 2 µA
Temperature coefficient	±(0.002% of reading + 0.002% of range) /°C (< 18°C or > 28°C)
Millivolt Measurement and Source
Resolution	Range	Accuracy (% of reading +counts)
-10 mV to 75 mV	0.01 mV	0.015% + 10 µA
Temperature coefficient	±(0.002% of reading + 0.002% of range) /°C (< 18°C or > 28°C)
Thermocouple Input and Output
TC Type	Range (°C)	Measure (°C)		Source (°C)
TC Type	Range (°C)	1 year	2 year	1 year	2 year
E	-250 to 200°C	1.3	2	0.6	0.9
	-200 to -100°C	0.5	0.8	0.3	0.4
	-100 to 600°C	0.3	0.4	0.3	0.4
	600 to 1000°C	0.4	0.6	0.2	0.3
N	-200 to -100°C	1.0	1.5	0.6	0.9
	-100 to 900°C	0.5	0.8	0.5	0.8
	900 to 1300°C	0.6	0.9	0.3	0.4
J	-210 to -100°C	0.6	0.9	0.3	0.4
	-100 to 800°C	0.3	0.4	0.2	0.3
	800 to 1200°C	0.5	0.8	0.3	0.3
K	-200 to -100°C	0.7	1	0.4	0.6
	-100 to 400°C	0.3	0.4	0.3	0.4
	400 to 1200°C	0.5	0.8	0.3	0.4
	1200 to 1372°C	0.7	1	0.3	0.4
T	-250 to -200°C	1.7	2.5	0.9	1.4
	-200 to 0°C	0.6	0.9	0.4	0.6
	0 to 400°C	0.3	0.4	0.3	0.4
B	600 to 800°C	1.3	2	1	1.5
	800 to 1000°C	1	1.5	0.8	1.2
	1000 to 1820°C	0.9	1.3	0.8	1.2
R	-20 to 0°C	2.3	2.8	1.2	1.8
	0 to 100°C	1.5	2.2	1.1	1.7
	100 to 1767°C	1	1.5	0.9	1.4
S	-20 to 0°C	2.3	2.8	1.2	1.8
	0 to 200°C	1.5	2.1	1.1	1.7
	200 to 1400°C	0.9	1.4	0.9	1.4
	1400 to 1767°C	1.1	1.7	1	1.5
C	0 to 800°C	0.6	0.9	0.6	0.9
	800 to 1200°C	0.8	1.2	0.7	1
	1200 to 1800°C	1.1	1.6	0.9	1.4
	1800 to 2316°C	2	3	1.3	2
L	-200 to -100°C	0.6	0.9	0.3	0.4
	-100 to 800°C	0.3	0.4	0.2	0.3
	800 to 900°C	0.5	0.8	0.2	0.3
U	-200 to 0°C	0.6	0.9	0.4	0.6
U	0 to 600°C	0.3	0.4	0.3	0.4
BP	0 to 1000°C	1	1.5	0.4	0.6
	1000 to 2000°C	1.6	2.4	0.6	0.9
	2000 to 2500°C	2	3	0.8	1.2
XK	-200 to 300°C	0.2	0.3	0.2	0.5
XK	300 to 800°C	0.4	0.6	0.3	0.6
G	100 to 300°C	1.6	2.4	1.2	1.8
	300 to 1500°C	1	1.5	1	1.5
	1500 to 2320°C	2	3	1.6	2.4
D	0 to 300°C	1.6	2.4	1.2	1.8
	300 to 1500°C	1	1.5	1	1.5
	1500 to 2315°C	2	3	1.6	2.4
P	0 to 1000°C	1.6	2.4	0.6	0.9
P	1000 to 1395°C	2	3	0.8	1.2
M	-50 to 100°C	1.0	1.5	0.4	0.6
	100 to 1000°C	1.6	2.4	0.6	0.9
	1000 to 1410°C	2	3	0.8	1.2
