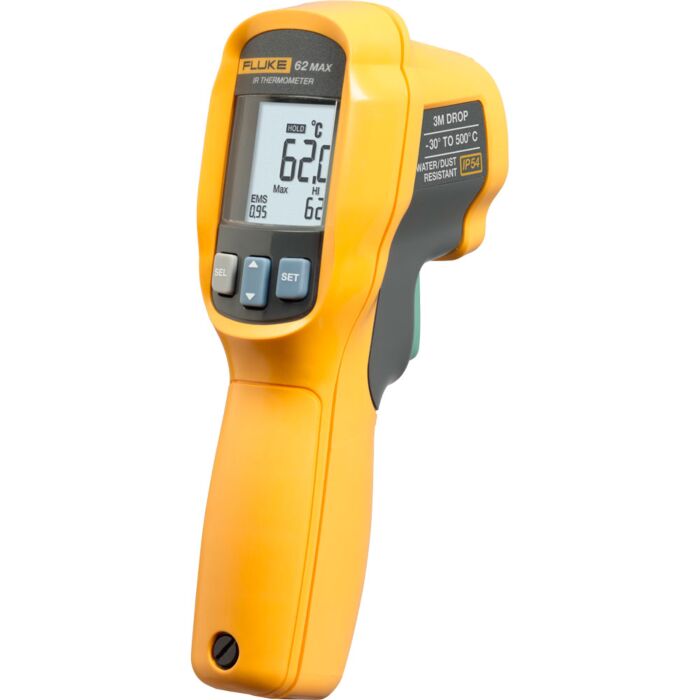

Fluke 62MAX Single laser infrared thermometer, 10:1 spot

Order # 62MAX | Mfg # 5065894

In Stock!

Save 20%

$147.99

$118.39

In stock

The Fluke 62 MAX and 62 MAX+ infrared thermometers are everything you&#39d expect from the experts in measuring temperature in transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents in hard to reach areas for repair and maintenance. Small in size, extremely accurate and yet easy to use . IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop.

Check out Transcat's Fluke Thermometer Selection Guide!

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Dust and water-resistant: IP54 rated for dust and water resistance
Rugged: 3-meter (9.8-foot) drop tested
Ergonomically designed: Completely redesigned for a more natural hand fit
Small and lightweight; clips to your tool belt or belt loop or easily fits into your tool box
Distance to spot: Precise laser technology makes for more accurate and repeatable measurements
Large, backlit display: Large screen makes data easier to read, even in dark areas
Min/Max/Avg/Dif: Displays the minimum, maximum or average temperature, or the difference between two measurements
Alarm: Hi and Lo alarms for rapid display of measurements outside the limits
Power: Both the 62 MAX and 62 MAX+ are powered by a single, standard AA battery

Technical Resources

Fluke 62 Max+ Infrared Thermometer User Manual
Fluke 62 Max+ Infrared Thermometer User Manual Supplement
Fluke 62MAX / 62MAX+ Infrared Thermometer - User's Manual
Fluke 62MAX / 62MAX+ Infrared Thermometer - User's Manual Supplement
Fluke 62MAX / 62MAX+ Infrared Thermometer - CE Declaration of Conformity
Fluke 62MAX / 62MAX+ Infrared Thermometer - Statement of Memory Volatility
Application - Fluke 62 Mini IR Thermometer
Fluke 64 MAX, 62 MAX+ & 62 MAX Datasheet

Specifications

Specifications
Temperature range	-30°C to 500°C (-22°F to 932°F)
Accuracy	±1.5°C or ±1.5% of reading, whichever is greater
	-10°C to 0°C: ±2.0
	-30°C to -10°C: ±3.0
Response time (95%)	< 500 ms (95% of reading)
Spectral response	8 to 14 microns
Emissivity	0.10 to 1.00
Optical resolution	10:1 (calculated at 90% energy)
Display resolution	0.1°C (0.2°F)
Repeatability of readings	±0.8% of reading or < ±1.0°C (2°F), whichever is greater
Power	AA battery
Battery life	10 hours with laser and backlight on
Physical Specifications
Weight	255 g (8.99 oz)
Size	175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in)
Operating temperature	0°C to 50°C (32°F to 122°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F), (without battery)
Operating humidity	10% to 90% RH non-condensing at 30°C (86°F)
Operating altitude	2000 meters above mean sea level
Storage altitude	12,000 meters above mean sea level
IP rating	IP 54 per IEC 60529
Drop test	3 meters
Vibration and shock	IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
EMC	EN 61326-1:2006 EN 61326-2:2006
Standards and agency approval	Compliance	EN/IEC 61010-1: 2001
	Laser safety	FDA and EN 60825-1 Class II
