Fluke 52-2 Dual Input Thermometer, 60Hz, Noise Rejection

Order # 52-2T | Mfg # 674689

$590.99

In stock

You can use the 52 II to measure two contact temperature inputs simultaneously on motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, or E-type thermocouple temperature sensors.

Check out Transcat's Fluke Thermometer Selection Guide!

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Laboratory accuracy. Wherever you go

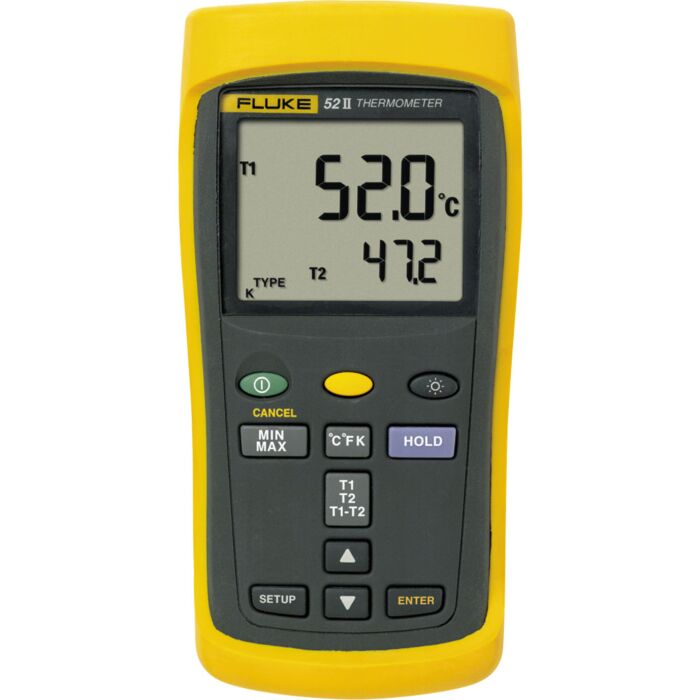

The Fluke 52 Series II contact thermometers offer fast response and laboratory accuracy (0.05% + 0.3°C) in a rugged, handheld test tool. Take contact temperature for checking motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, and E type thermocouple (temperature sensors).

Product Highlights

Fluke Model # 52-2
User selectable °C or °F
1°C or 0.1°C (1°F or 0.2°F) resolution - internal jumper
Accepts J, K, T, E-Type Thermocouples
Wide variety of interchangeable thermocouple probes available
READ Hold
Self test
Dual Thermocouple Input
Differential Temperature (T1 -T2) (SCAN Function (T1, T2, T1 -T2, . . .)
MIN/MAX Record
Push Button Selectable Resolution

Each Unit Includes

Two bead probe thermocouples
Holster

Technical Resources

Fluke 50 Series II Digital Thermometers - Technical Data
Fluke 51 / 52 Series II Digital Thermometers - User's Manual
Fluke 51 / 52 / 53 / 54 Digital Thermometers - Statement of Memory Volatility
Fluke 51 / 52 / 53 / 54 Series II Digital Thermometers - Service Manual
Fluke 51 / 52 / 53 / 54 Series II Digital Thermometers - Service Manual Supplement
Fluke 51 / 52 / 53 / 54 Series II Digital Thermometers - Product Overview
Fluke 50 Series II / Series IIB Digital Thermometers - CE Declaration of Conformity

Specifications

Specifications
Temperature accuracy	Above -100°C	J, K, T, E, and N-type: ±[0.05% + 0.3°C]1
		R and S-type: ±[0.05% + 0.4°C]1
	Below -100°C	J, K, E, and N-types: ±[0.20% + 0.3°C]1
		T-type: ±[0.50% + 0.3°C]
Temperature	J-type	-210°C to 1200°C
	K-type	-200°C to 1372°C
	T-type	-250°C to 400°C
	E-type	-150°C to 1000°C
	N-type	-200°C to 1300°C1
	R and S-type	0°C to 1767°C1
Temperature scale	ITS-90
Applicable standards	NIST-175
Display resolution	0.1°C, 0.1 K < 1000
	1°C, 1 K ≥ 1000
1. Only the Fluke Models 53 II B and 54 II Bthermometers are capable of measuring N, R, and S-type thermocouples.
Environmental Specifications
Operating temperature	-10°C to 50°C
Storage temperature	-40°C to 60°C
Humidity (without condensation)	0% to 90%; 0°C to 35°C
	0% to 70%; 0°C to 50°C
Safety Specifications
Overvoltage category	CSA C22.2 No. 1010.1 1992; EN 61010 Amendments 1,2
Agency approvals	CE, CSA, TÜV (pending)
Mechanical and General Specifications
Size (L x W x D)	173 x 86 x 38 mm
Weight	400 g
Batteries	3 AA batteries; typical 1000-hour life

Visit our Fluke Thermometer Selection Guide
