The Fluke Networks CFM100SINW INTL CertiFiber Max Single -Mode OLTS Kit, International version allows users to maximize multi -fiber certification efficiency by measuring loss, length, and polarity of up to 24 fibers in seconds. Field -replaceable UniPort adapters connect directly to MPO, MMC, pinned/unpinned configurations, and more for maximum flexibility. Users can set up projects correctly the first time with the Versiv ProjX management system while measurement uncertainty can be minimized with one -jumper reference setting and an integrated timer that tracks time since the reference was set and a counter for the number of times a test reference cord (TRC ) has been used. Troubleshoot fast with a built -in multi -fiber VFL, duplex power meter, and optional end face inspection.
All of this is on the powerful, proven Versiv platform. With more than 10,000 Certified Cabling Test Technicians (CCTT ) in the field, the CertiFiber Max OLTS is already part of a familiar, trusted tool set that is built Fluke rugged, supported by Fluke expertise, and backed by gold -standard Fluke service and experience.
The CertiFiber Max OLTS offers a native connection to MPO 12 pinned cables as standard and optionally supports MPO 12/16/24 and MMC 16/24 pinned or unpinned cables without complicated breakout cables or adjusting pin configurations. Changing configurations is as simple as swapping the field -changeable UniPort adapters and using the appropriate test reference cords. UniPort adapters allow for connection of any MPO 12/16/24 and MMC 16/24 pinned or unpinned cable to the test port and provide protection for the test port. TRC cords are available to support these same configurations.

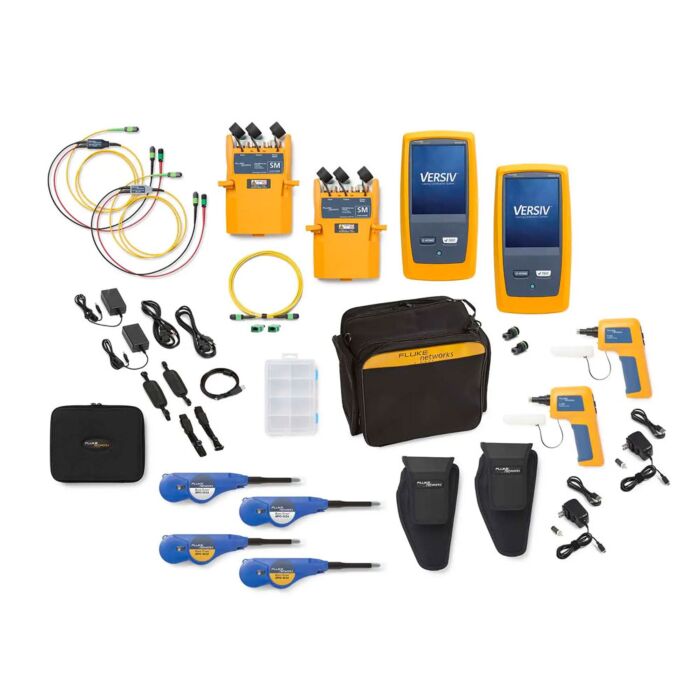

The CFM -100SI -NW kit provides users with two Versiv 2 Mainframes, two CertiFiber Max Modules, two FiberInspector Ultra Inspection Cameras, and an array of accessories for certifying length, loss, and polarity of pinned MPO 12 cables. The Versiv 2 Mainframes have Wi -Fi capabilities disabled for testing connections in secure facilities which do not allow for wireless capable devices.
- Includes 2x Versiv 2 Mainframes (Wi -Fi ), 2x CertiFiber Max Modules, 2x FiberInspector Ultra Inspection Cameras, and accessories for certifying length, loss, and polarity of pinned MPO 12 cables
- Non -wireless version, Wi -Fi disabled for testing connections using Versiv in secure facilities that do not allow wireless capable devices
- Part of modular Versiv/LinkWare cabling certification system
- Versiv/LinkWare ecosystem supports Tier I (OLTS ) and Tier II (OTDR ) fiber testing, inspection, and copper certification
- Measures loss, length, and polarity of up to 12 fibers in one second (up to 24 fibers optionally )
- Field -replaceable UniPort adapters connect to existing pinned/unpinned and future connector/pin configurations
- Tests 8/12/16 -fiber cables as standard and 24 -fiber cables optionally
- Standards -preferred one -jumper reference provides least amount of uncertainty in fiber measurements
- Tracks time since reference setting and count of tests for test reference cords (TRCs ) to ensure compliance with test processes
- Optional timer tracks length of time passed since reference was set
- Optional counter tracks how many tests have been performed with specific set of TRCs
- Tester includes "Wizard" that takes users step -by -step through referencing process
- Wizard specifies exact accessories needed, monitors user's process, verifies measurement limits, and stores critical reference values for reporting
- UniPort adapters are color -coded to match Wizard and TRCs
- Determines length -based loss limits for testing via built -in calculator
- Simple PASS or FAIL displayed for each link tested along with worst -case loss margin, length, and polarity
- Touchscreen displays loss on each fiber and polarity diagram
- Provides double -ended fiber optic inspection capability via FI -3000 FiberInspector Ultra Cameras
- Inspect and clean MPO endfaces at each end (MMC optional )
- Set up projects easily with Versiv ProjX management system, LinkWare PC software, or remotely with LinkWare Live
Applications
- Data Centers
- Enterprise Networks
- Telecommunications
Each Unit Includes
- 2 - Versiv 2 Mainframes, Wi -Fi Disabled
- 2 - CertiFiber Max Modules
- 1 - Set of TRC Cables
- 1 - Verify Cable
- 1 - USB Cable
- 2 - Power Supplies
- 1 - Hand Strap
- 1 - Hang Strap
- 1 - Cube Soft Case
- 1 - Plastic Case
- 1 - TRC/Verify Cables Carrying Case
- 1 - Set of Certificates
- 1 - OSS Supplement Paperwork
- 1 - Reference Guide
- 1 - User Manual
- 2 - MPO Fiber Cameras
- 2 - MPO Fiber Camera Holsters
- 2 - MPO 12/24 APC Patch Cord Tips
- 2 - Keyless MPO 12/24 and 16/32 Fiber Adapters
- 2 - MPO to Single Tip Camera Adapters
- 2 - MPO 16/32 Fiber Adapter Couplers
- 2 - MTP Adapters
- 2 - MPO/MTP 16 Connector Fiber Cleaners
- 2 - MPO/MTP 12 Connector Fiber Cleaners
- 2 - Camera Power Supplies, 5V
- 2 - Power Supply Adapter Kits
- 2 - Wrist Straps
- 2 - 6 -Section Compartment Boxes
- 2 - 4 -Section Compartment Boxes
- 1 - FI -3000 Quickstart Guide
- 1 - QuickClean Quickstart Guide
