The Fluke Networks CFM100SINTL CertiFiber Max Single -Mode OLTS Kit, international version allows users to maximize multi -fiber certification efficiency by measuring loss, length, and polarity of up to 24 fibers in seconds. Field -replaceable UniPort adapters connect directly to MPO, MMC, pinned/unpinned configurations, and more for maximum flexibility. Users can set up projects correctly the first time with the Versiv ProjX management system or remotely with LinkWare Live while measurement uncertainty can be minimized with one -jumper reference setting and an integrated timer that tracks time since the reference was set and a counter for the number of times a test reference cord (TRC ) has been used. Troubleshoot fast with a built -in multi -fiber VFL, duplex power meter, and optional end face inspection.
All of this is on the powerful, proven Versiv platform. With more than 10,000 Certified Cabling Test Technicians (CCTT ) in the field, the CertiFiber Max OLTS is already part of a familiar, trusted tool set that is built Fluke rugged, supported by Fluke expertise, and backed by gold -standard Fluke service and experience.
The CertiFiber Max OLTS offers a native connection to MPO 12 pinned cables as standard and optionally supports MPO 12/16/24 and MMC 16/24 pinned or unpinned cables without complicated breakout cables or adjusting pin configurations. Changing configurations is as simple as swapping the field -changeable UniPort adapters and using the appropriate test reference cords. UniPort adapters allow for connection of any MPO 12/16/24 and MMC 16/24 pinned or unpinned cable to the test port and provide protection for the test port. TRC cords are available to support these same configurations.
The CFM -100S kit provides users with two Versiv 2 Mainframes, two CertiFiber Max Modules, and an array of accessories for certifying length, loss, and polarity of pinned MPO 12 cables. The Versiv 2 Mainframes feature integrated Wi -Fi capabilities for the ability to share results remotely while on the jobsite.
- Includes 2x Versiv 2 Mainframes (Wi -Fi ), 2x CertiFiber Max Modules, and accessories for certifying length, loss, and polarity of pinned MPO 12 cables
- Wireless version, integrated Wi -Fi for documenting and sharing results over LinkWare and smart devices
- Part of modular Versiv/LinkWare cabling certification system
- Versiv/LinkWare ecosystem supports Tier I (OLTS ) and Tier II (OTDR ) fiber testing, inspection, and copper certification
- Measures loss, length, and polarity of up to 12 fibers in one second (up to 24 fibers optionally )
- Field -replaceable UniPort adapters connect to existing pinned/unpinned and future connector/pin configurations
- Tests 8/12/16 -fiber cables as standard and 24 -fiber cables optionally
- Standards -preferred one -jumper reference provides least amount of uncertainty in fiber measurements
- Tracks time since reference setting and count of tests for test reference cords (TRCs ) to ensure compliance with test processes
- Optional timer tracks length of time passed since reference was set
- Optional counter tracks how many tests have been performed with specific set of TRCs
- Tester includes "Wizard" that takes users step -by -step through referencing process
- Wizard specifies exact accessories needed, monitors user's process, verifies measurement limits, and stores critical reference values for reporting
- UniPort adapters are color -coded to match Wizard and TRCs
- Determines length -based loss limits for testing via built -in calculator
- Simple PASS or FAIL displayed for each link tested along with worst -case loss margin, length, and polarity
- Touchscreen displays loss on each fiber and polarity diagram
- Provides double -ended fiber optic inspection capability via FI -3000 FiberInspector Ultra Cameras (sold separately )
- Inspect and clean MPO endfaces at each end (MMC optional )
- Set up projects easily with Versiv ProjX management system, LinkWare PC software, or remotely with LinkWare Live
Applications
- Data Centers
- Enterprise Networks
- Telecommunications/Service Providers
- Secure Facilities/Government Installations

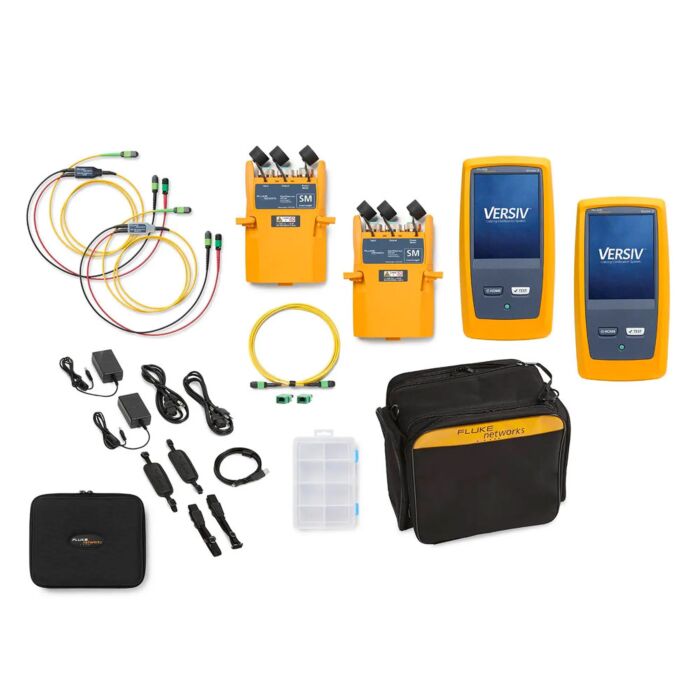

Each Unit Includes
- 2 - Versiv 2 Mainframes with Integrated Wi -Fi
- 2 - CertiFiber Max Modules
- 1 - Set of TRC Cables
- 1 - Verify Cable
- 1 - USB Cable
- 2 - Power Supplies
- 1 - Hand Strap
- 1 - Hang Strap
- 1 - Cube Soft Case
- 1 - Plastic Case
- 1 - TRC/Verify Cables Carrying Case
- 1 - Set of Certificates
- 1 - OSS Supplement Paperwork
- 1 - Reference Guide
- 1 - User Manual
