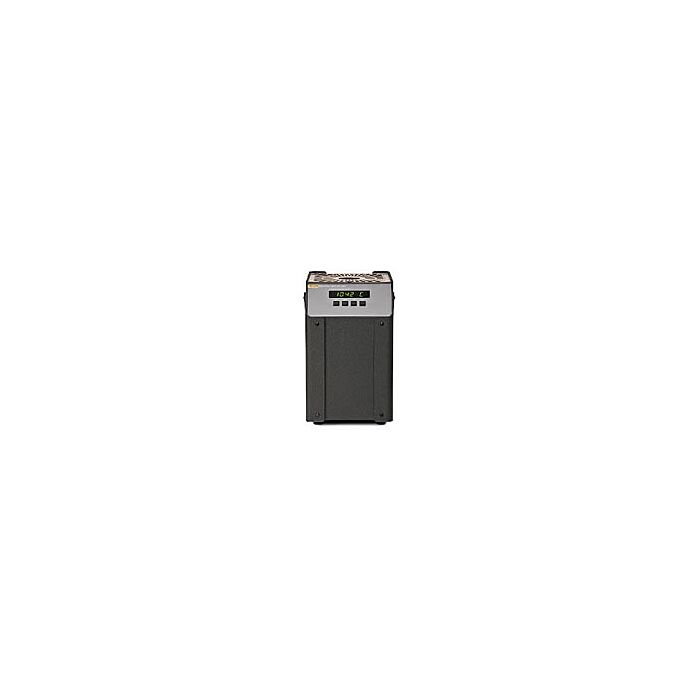

Fluke Calibration 9150-A Furnace, 1200C, with Insert A, 110V, 50/60Hz
Furnace, 1200C TC with 3150-2, 110V, 50/60Hz
Order #: 9150-A
Mfg #: 1658384
$12,088.00
Fluke Calibration 9150-A Furnace, 1200C, with Insert A, 110V, 50/60Hz
Furnace, 1200C TC with 3150-2, 110V, 50/60Hz
Order #: 9150-A
Mfg #: 1658384
$12,088.00
Availability:
In stock
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
- Temperature Range: 150 °C to 1200 °C (302 °F to 2192 °F)
- Display Resolution: 0.1 ° to 999.9 ° 1 ° above 1000 °
- Stability: ±0.5 °C
- Display Accuracy: ±5 °C
- Well Diameter: 1.25" (32 mm)
- Well Depth: 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in]insulator)
- Heating Time: 35 minutes to 1200 °C
- Cooling Time: 140 minutes with block
- Well-to-Well Uniformity: ±0.5 °C to ±1.0 °C (Insert “C” at 1200 °C)
- Stabilization: 20 minutes
- Weight: 28lb (13kg)
- NIST-Traceable Calibration: Data at 150 °C, 300 °C, 450 °C, 600 °C, 800 °C, 1000° C, and 1200 °C
Each Unit Includes
- 3150-2 Insert
- Nist Traceable Certificate
- Fluke Calibration 3150-3 Multi-Hole Insert, B (9150) (2"x 3/16", 2"x1/4", 2"x3/8")Multi-Hole Insert, B (9150) (2"x 3/16", 2"x1/4", 2"x3/8")
Order #: 3150-3
Mfg #: 1651661
Availability: Ships in 3-4 weeksSpecial Price $1,182.75 Regular Price $1,425.00 - Fluke Calibration 3150-2 Insert A, Aluminum with Miscellaneous Holes (9150)Insert, A Alumina w/Misc.Holes (9150)
Order #: 3150-2
Mfg #: 1651650
Availability: Ships in 1-2 weeksSpecial Price $1,182.75 Regular Price $1,425.00 - Fluke Calibration 3150-4 Multi-Hole Insert, (6 x 1/4") C for the 9150Multi-Hole Insert, (6 x 1/4") C for the 9150
Order #: 3150-4
Mfg #: 1651677
Availability: Ships in 3-4 weeksSpecial Price $1,182.75 Regular Price $1,425.00 - Fluke Calibration 3150-6 Insert D, Aluminum with 6 Metric Holes (9150)Insert,D,Aluimna w/6 Metric Holes (9150)
Order #: 3150-6
Mfg #: 2085476
Availability: Ships in 3-4 weeksSpecial Price $1,182.75 Regular Price $1,425.00
All products in this series

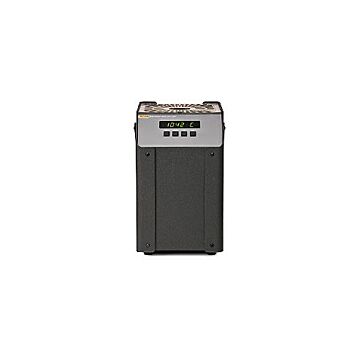

- Fluke Calibration 9150-B-156 Thermocouple Furnace, 302F to 2192F with 3150-3 Insert, 110V, 50/60Hz, 1200CTC Furnace, 302F to 2192F with 3150-3, 110V, 50/60Hz, 1200C$12,088.00
