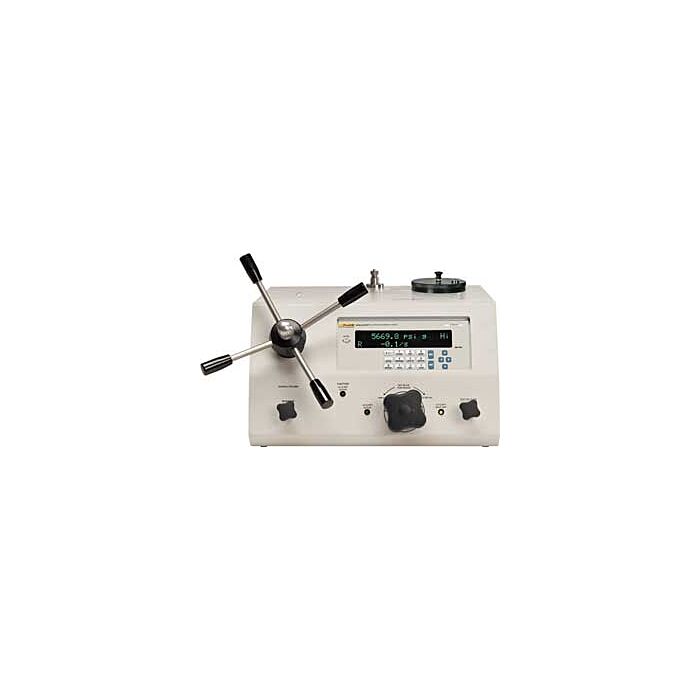

Fluke Calibration 6532-200M-B Deadweight Tester, E-DWT-H A200M/A20M, 4 to 200 MPa, 600 to 30000 PSI
E-DWT-H A200M/A20M, 4 to 200 MPa, 600 to 30,000 psi

Order #: 6532-200M-B

Mfg #: 4625465

Questions about availability or need help? Contact Us:

(800) 633-0561
$51,905.66

Fluke Calibration 6532-200M-B Deadweight Tester, E-DWT-H A200M/A20M, 4 to 200 MPa, 600 to 30000 PSI

E-DWT-H A200M/A20M, 4 to 200 MPa, 600 to 30,000 psi

Order #: 6532-200M-B

Mfg #: 4625465

$51,905.66
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

  • One-year measurement uncertainty is ± 0.02% of reading from 10% to 100% with one Q-RPT, and from 1% to 100% with two Q-RPTs
  • Low torque variable volume allows for pressure generation up to 200 MPa (30,000 psi) with minimal physical effort
  • Separate fine adjustment tool for maximum, superfine control resolution
  • User defined resolution and ready limits enable user to optimize performance based on DUT specifications
  • High pressure isolation valve and pressure relief valve protect the low pressure reference transducer from over pressure when high pressure reference transducer is active
  • AutoRange feature optimizes measurement and safety features for the specific range of the instrument being calibrated
  • Simple rezeroing while vented at atmospheric pressure
  • Simple, objective pressure “ready/not ready indicator with user adjustable criteria to ensure repeatable results among operators
  • Not dependent on local gravity or ambient temperature
  • Sets and reads any pressure value directly in any unit of measure, without moving weights
  • Built-in priming system to fill system with test fluid and purge unwanted air to assure smooth operation
  • Optional foot switch accessory allows hands-free data collection when running AutoTests

Each Unit Includes

  • E-DWT-H Electronic Deadweight Tester with power supply and operating manual
  • Vacuum liquid fill kit
  • Test station quick-mount fitting
  • NPT adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
  • BSP adapters: 1/8 in, 1/4 in, 3/8 in and 1/2 in
  • Metric adapters: M20 x 1.5 and M14 x 1.5
