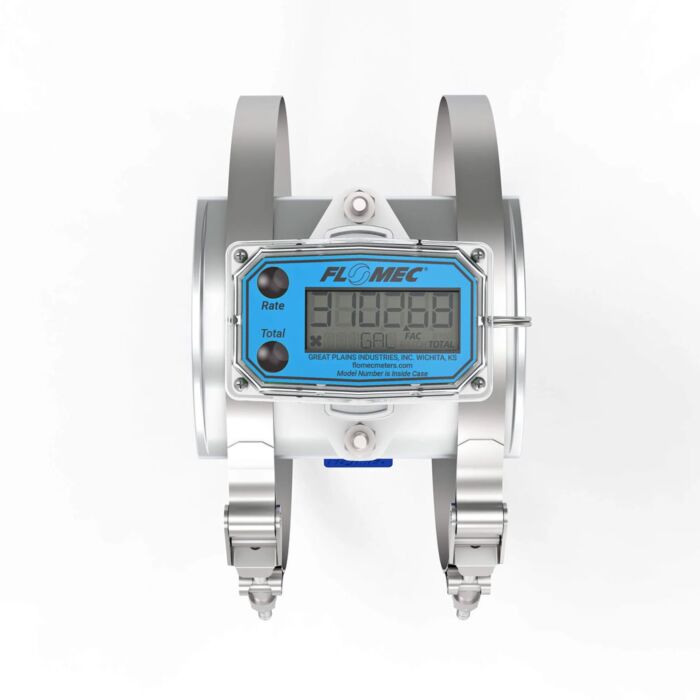

12-inch Ultrasonic Flow Meter with Q9 Battery-Powered Digital Display, Saddle for Tube Pipe.
Flow Meter: FLOMEC AQUAsonic Series flow meters feature ultrasonic technology for unsurpassed accuracy, reliability, and convenience in flow measurement. With NSF 61 certification, AQUAsonic serves a range of customers monitoring irrigation flow to potable water applications. AQUAsonic combines the highly accurate FLOMEC QS200 ultrasonic insert with the easy-to-read Q9 digital display. Additional benefits of low flow detection, zero maintenance with no moving parts, and no need for winterization make AQUAsonic the most efficient solution for water metering.
Q9 Digital Display: Battery-powered display has 11 pre-programmed units of measure plus 1 custom option.
Saddle: Aluminum, Tube pipe saddle is sized for 12 inch Tube pipe.
- Accuracy (%of reading) - Meter: +/- 2.0%
- Metric Operating Fluid Temp: 0 - 60 C
- Std Operating Fluid Temp: 32 - 140 F
- Std Pressure Rating: 150 psi
- Metric Pressure Rating: 10.3 bar
- Safety Classification: Safe Area Only
- Std Flow Range: 0.1 - 15 ft/sec
- Metric Flow Range: 0.03 - 4.6 m/s
- Technology: Ultrasonic
- Line Size: 12-inch
- Housing Material - Meter: Aluminum
- Wetted Materials - Meter: Aluminum, EPDM, PEI (Ultem 1000), PPS (Ryton R-4), Silicone
- Wetted O-Ring/Seal Material - Meter: EPDM
- Powered By: (1) C-size 3.6V Lithium Battery
- Field Calibration: Yes
- Std Typical K-Factor: Varies by pipe size and pipe type - See Operating Instructions
- Approval - Combined: CE, IP67, NSF, RoHS
Each Unit Includes
- (1) AQUAsonic ultrasonic flow meter with local battery-powered Q9 computer display, (1) C-size 3.6V lithium battery (installed), (1) Saddle with hardware, (1) Gasket, (2) Band clamps, (1) Quick release pin (2) Operating instructions for electronics operation and installation instruction
- Warranty: 2-Year Warranty
