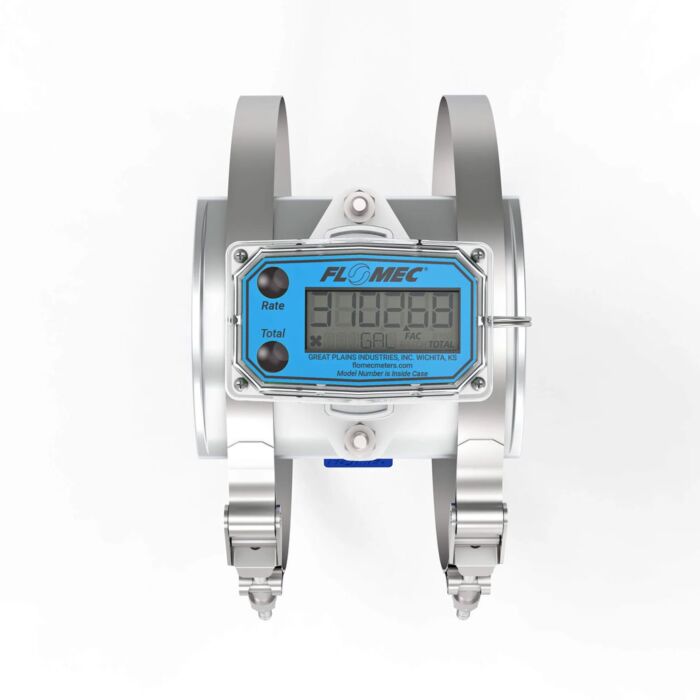

12-inch Ultrasonic Flow Meter with Q9 Battery-Powered Digital Display, Saddle for NPS IPS Pipe (ASME).
Flow Meter: FLOMEC AQUAsonic Series flow meters feature ultrasonic technology for unsurpassed accuracy, reliability, and convenience in flow measurement. With NSF 61 certification, AQUAsonic serves a range of customers monitoring irrigation flow to potable water applications. AQUAsonic combines the highly accurate FLOMEC QS200 ultrasonic insert with the easy-to-read Q9 digital display. Additional benefits of low flow detection, zero maintenance with no moving parts, and no need for winterization make AQUAsonic the most efficient solution for water metering.
Q9 Digital Display: Battery-powered display has 11 pre-programmed units of measure plus 1 custom option.
Saddle: Aluminum, NPS IPS pipe saddle is sized for 12 inch NPS IPS pipe.
- Low-cost and high return on investment
- Easy installation, easy maintenance with no moving mechanical parts
- Extended leak detection with flow monitoring down to 0.1 fps (0.03 m/s)
- High accuracy: +/-2.0% of reading (compared to full scale accuracy)
- Battery-powered local computer display
- 11 pre-programmed engineering units plus 1 custom option
- 2 Totals: Batch Total and Accumulative Total); Rate of Flow
- Pin protection: 4-digit user selectable
- Quick installation onto TUBE (STEEL) 7 GA, 10 GA, 11 GA, 12 GA, 14 GA
- NSF 61 certification for potable water applications
Applications
- Agricultural Irrigation Systems
- Potable Water Systems
- Groundwater & Well Management
- Low-Flow Leak Detection
- Industrial Effluent & Plant Water
Each Unit Includes
- 12" Ultrasonic FlowMeter, Digital Display, Saddle for NPS IPS Pipe (UM300SPARUXXA20-QUDSBAN1-GMA)
