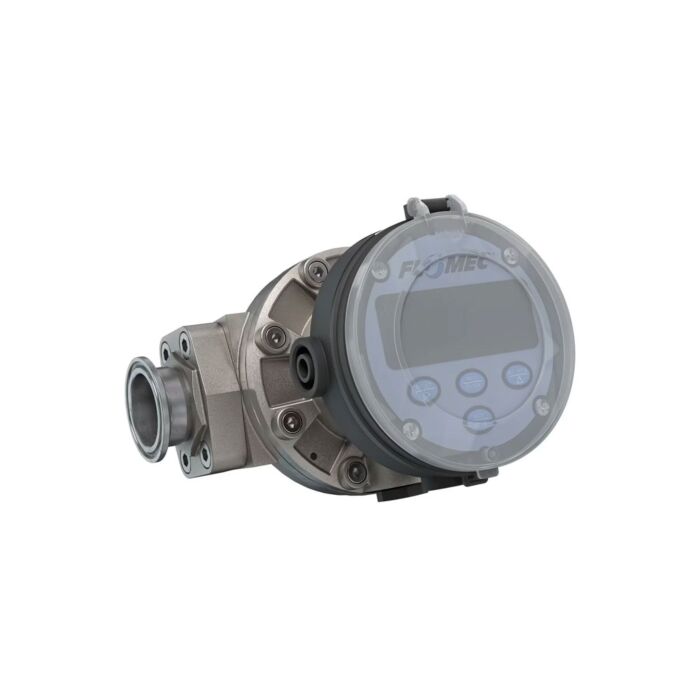

1-inch Stainless Steel Oval Gear Flow Meter with Tri-Clamp Fittings. RT14 Transmitter with Built-In Digital Display. For glycols, light acids, lubricants. The FLOMEC Stainless Steel Oval Gear Flow Meter is the ideal choice for high-accuracy batching, dosing, or packaging of clean alcohols, mildly aggressive chemicals, lubricants, additives, and other high-viscosity fluids. Oval gear technology features rotors that provide highly accurate and repeatable direct volumetric readings. Flow Meter: No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space. RT14 Transmitter/Display: Fully programmable self-powered display with re-settable (batch) total, cumulative total, and instantaneous flow rate. This four-button design can provide an externally powered analog output, plus a discrete output or high/low alarms for easy connection to a variety of chart recorders, display equipment, and process control equipment.
- Local Display RT14, LCD backlit display, analog output and discrete output signal for connection to a variety of chart recorders, display equipment, and process control equipment. Operating temperature of -22° F to 176° F (-30° C to 80° C)
- Flow alarm for high, low or high/low
- PPS (Ryton) Oval Gear rotors that provide highly accurate and repeatable direct volumetric reading
- Stainless Steel housing material when you can not compromise for chemical compatibility, higher pressures and/ or higher temperature requirements
- No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space
- Recommend 100 Mesh (150 µn) filtration installed prior to meter
- Tri-clamp (not food grade) options available: 3/4-inch fitting for 1/2-inch pipe, 1-inch fitting for 3/4-inch pipe, 1-1/2-inch fitting for 1-inch pipe, 2-inch fitting for 1-1/2-inch pipe, 2-1/2-inch fitting for 2-inch pipe
Applications
- Agricultural & Chemical Mixing
- Industrial Process Control
- Automotive & Fleet Fluid Handling
- Water & Wastewater Treatment
Each Unit Includes
- 1" OvalGear SS Tri-Clamp FlowMeter, RT14 Trans. Digi Display (OM025S001-832R5G)
