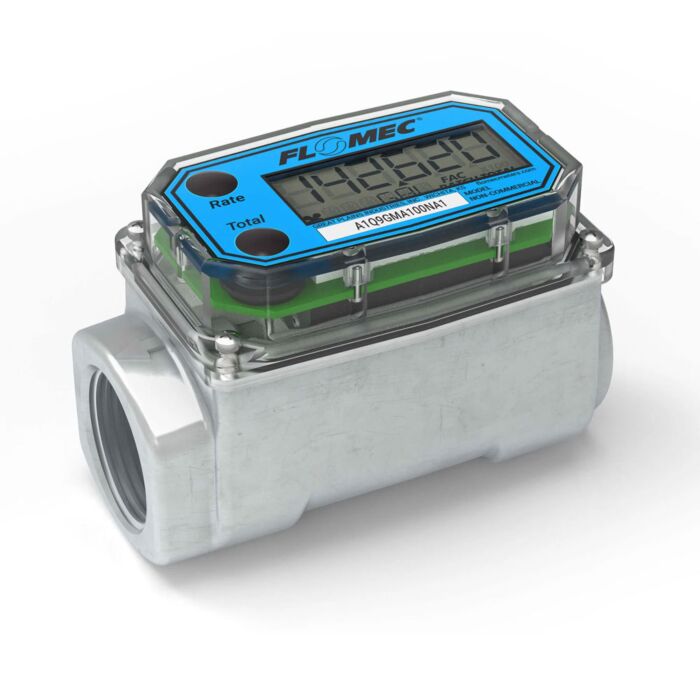

1-inch Low Flow Nylon Flow Meter with NPT Fittings. Q9 Digital Display with Transmitter. For water and non-aggressive chemicals. The FLOMEC A1 Paddlewheel Flow Meter series with Q9 Display is designed as a self-contained, battery-powered unit. For low flow applications: 0.3 - 3 GPM (1 to 11 L/min). Accuracy can vary up to ± 5% depending on installation and fluid type. Field calibration is recommended for best accuracy. Lightweight, compact design allows for easy installation. NPT fittings. Q9 Digital Display: Battery-powered display has 11 pre-programmed units of measure plus 1 custom option.
- Unique package combines Turbine and LCD into a self-contained, compact, economical meter
- Local Display Computer features: 2 Non-Volatile Totals (Batch Total = Resettable, Total = Non-resettable) and Rate of Flow
- Output capabilities available to communicate with process control equipment
- Lightweight, compact design allows for easy installation
- 12 selectable engineering units (gallons or liters are standard defaults)
- Factory calibration
Applications
- Petroleum Products
- Industrial Sectors
- Gravity Feeds
Each Unit Includes
- 1" Turbine Nylon NPTA1FlowMeter Digital Display, LowFlow, HazardousArea (A1Q9GMN025NA1)
