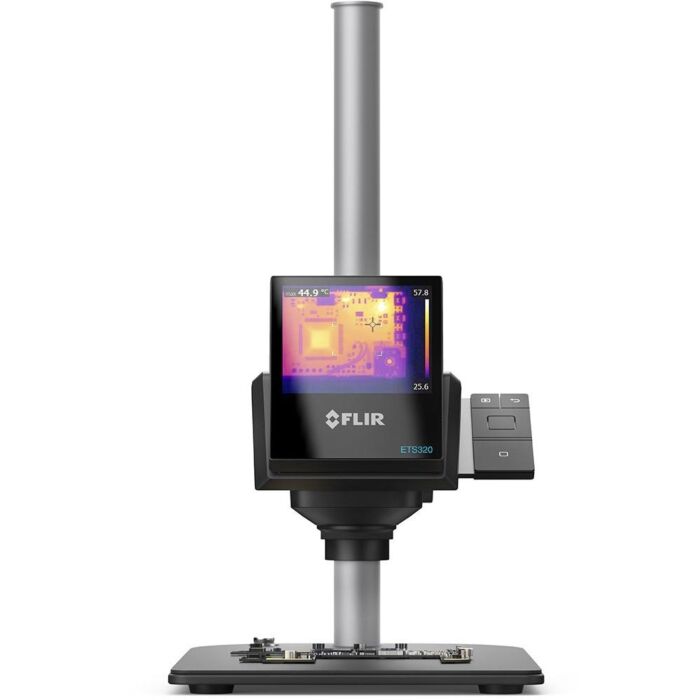

FLIR ETS320 Thermal Imager for Electronic Board & Device Testing, 320x240
Order #: ETS320
Mfg #: 63950-1001
Product Highlights
The Flir ETS320 Thermal Camera was designed for quick temperature checks on PCB boards and electronic devices in the lab. Reduce your test times and improve product design. The Flir ETS320 takes the guesswork out of thermal testing across more than 76,000 points at once with the sensitive, accurate 320 x 240 detector. The FLIR ETS320 is the first thermal camera specifically designed for hands-free laboratory testing.
Engineered specifically for lab electronics testing, the ETS320 is battery powered and hands free, and connects via USB to your PC for immediate analysis and sharing of thermal data.
Features of the Flir ETS320
- 320 x 240 pixel IR detector
- 45° field of view
- Crisp 3" LCD display provides immediate thermal feedback
- Thermal sensitivity (NEtD) of 0.06C
- Temperature measurement accuracy of +/-3C
- Wide temperature range, up to 250C
- Records standard radiometric JPEGs
- Ergonomically designed for benchtop use
- IR Resolution: 320 x 240 (76,800 pixels)
- Spectral Range: 7.5 - 13.0 µm
- Detector Type: Uncooled microbolometer
- NETD: <60 mK
- Available Lenses: NA
- Camera f-number: f/1.5
- Close-up Lenses/Microscopes: NA
- Field of view (FOV): 45° x 34°
- Fixed Focus Distance: 70 mm ± 10 mm
- Image Frequency: 9 Hz
- Non-radiometric IR video streaming: Uncompressed colorized video using USB
- Radiometric IR video streaming: Full dynamic to PC (FLIR Tools/Tools+) using USB
- Spectral Range: 7.5 - 13.0 µm
- Spot Size Min. Focus: 170 µm
- Accuracy: ±3°C or ±3% of reading for ambient temperature 10°C to 35°C (50°F to 95°F)
- Area: Box with max/min
- Camera size (L x W x H): 22 x 15 x 30 cm (8.7 x 5.9 x 11.8 in)
- Camera weight incl battery: 0.575 kg (1.27 lbs)
- Emissivity Correction: Variable from 0.1 to 1.0
- Reflected apparent temperature correction: Automatic, based on input of reflected temperature
- Spot Meter: Center spot
- Image File Format: Standard radiometric JPEG, 14-bit measurement data included
- Interface: USB Micro: data transfer to and from PC and Mac devices
Applications
- Laboratory work
- Product development/testing
- Research & development
- Thermal testing
Improve Product Design
The FLIR ETS320 promotes design improvements and shortens product development time by detecting design flaws that materialize as heat.
- 320 x 240 IR sensor offers 76,800 points of non-contact temperature measurement
- True 45° field of view for broad initial scans to identify potential problems
- Measurement accuracy promotes quality assurance and factory acceptance of PCBs
Designed for Laboratory Work
The ETS320 is designed for hands-free laboratory testing, with simplified features that allow users to focus on their work instead of on the camera controls.
- Pole mount included for fast and easy setup
- Crisp 3" LCD display provides immediate thermal feedback
- FLIR Tools+ software for instant analysis, including Time vs. Temperature measurement
Each Unit Includes
- Camera
- mount
- stand
- power supply
- USB cable
- FLIR Tools+ software
System Overview | |
IR Resolution | 320 x 240 (76,800 pixels) |
Detector Type | Uncooled microbolometer |
Spectral Range | 7.5 - 13.0μm |
Thermal Sensitivity/NETD | <0.06°C |
Field of View (FOV) | 45° x 34° |
Fixed Focus Distance | 70mm ± 10mm |
F-number | 1.5 |
Spot Size @ Min. Focus 1 | 70μm |
Image Frequency | 9Hz |
Measurement and Analysis | |
Object Temperature Range | -20 to 250°C (-4 to 482°F) |
Accuracy | ±3°C or ±3% of reading for ambient temperature 10 to 35°C (50 to 95°F) |
Spotmeter | Center spot |
Area | Box with max/min |
Emissivity Correction | Variable from 0.1 to 1.0 |
Emissivity Table | Table of pre-defined materials |
Reflected Apparent Temperature Correction | Automatic, based on input of reflected temperature |
Storage of Images | |
Image File Formats | Standard radiometric JPEG, 14-bit measurement data included |
Video Streaming | |
Radiometric IR Video Streaming | Full dynamic to PC (FLIR Tools/Tools+) using USB |
Non-Radiometric IR Video Streaming | Uncompressed colorized video using USB |
-
