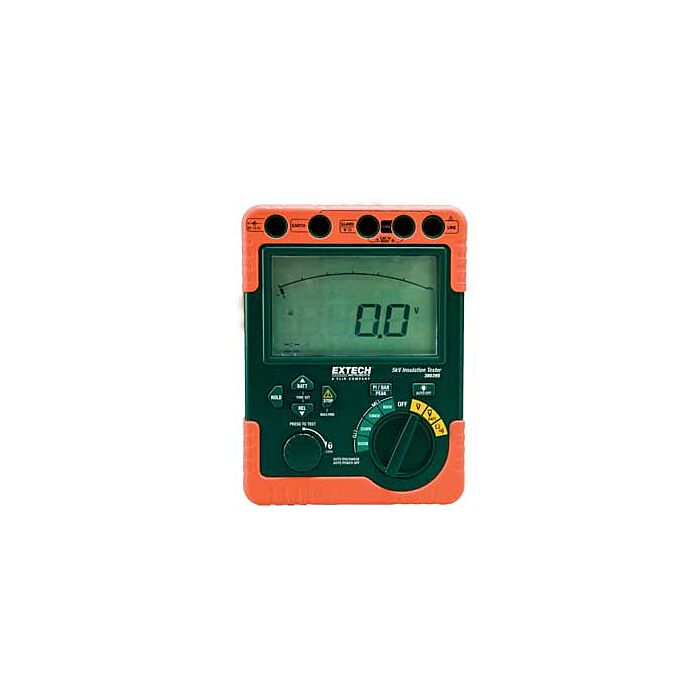

Extech 380395

High Voltage Insulation Tester 120V

Order #: 380395

Mfg #: 380395

Questions about availability or need help? Contact Us:

(800) 633-0561
$799.00

Extech 380395

High Voltage Insulation Tester 120V

Order #: 380395

Mfg #: 380395

$799.00
Availability: Ships in 2-3 weeks
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Wide range measurement up to 5kV with insulation resistance to 60GΩ
  • Test Voltages of 500V, 1000V, 2500V, and 5000V
  • Large 6000 Count Display with Bargraph and Backlight
  • Polarization Index Measurement (PI)
  • Dielectric Absorption Ratio Measurement (DAR)
  • AC/DC Voltage Measurement with Max/Min, Peak and Relative Functions
  • 1 to 15 Minute Timer Function for Insulation Measurements
  • Resistance Measurement
  • Indication of Output Voltage and Discharge Voltage
  • Auto-Discharge Function and Voltage Output Warning Function
  • Auto Power Off and Battery Check
  • Test Voltage 500V/1000V/2500V/5000V
  • Insulation Resistance 6MΩ, 60MΩ, 600MΩ, 6GΩ, 60GΩ
  • Insulation Accuracy ±2.5% of reading
  • AC/DC Voltage 600V
  • Resistance 600Ω
  • Continuity 50Ω
  • Power Eight type C batteries
  • Dimensions/ Weight 7.8 x 5.8 x 3.4" (198 x 148 x 86mm)/3.2lbs (1438g)

Each Unit Includes

  • Test leads
  • 8 x C batteries
  • AC adaptor
  • Heavy duty carrying case
