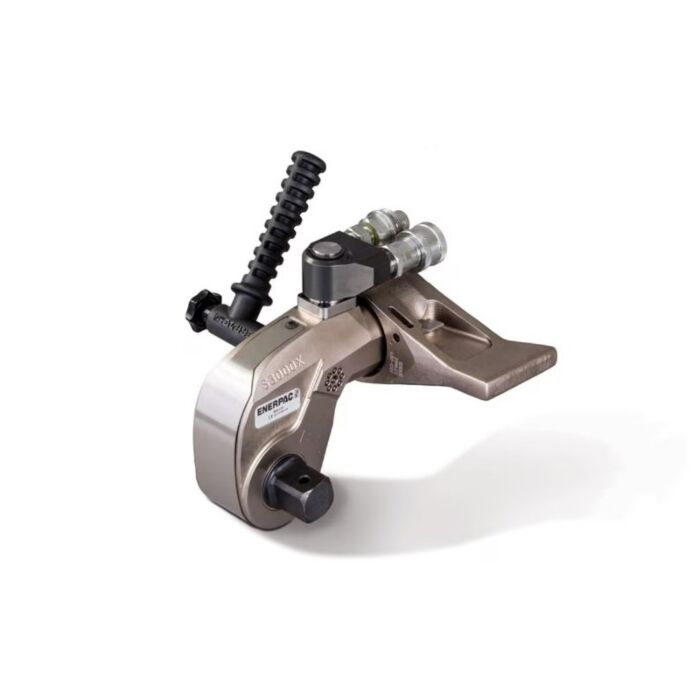

Enerpac S3000X Hydraulic Torque Wrench 3225

Enerpac S3000X Hydraulic Torque Wrench, 3225

Order # S3000X

Mfg # S3000X

call-regular 800-828-1470
$7,536.00
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

Enerpac S3000X Hydraulic Torque Wrench, 3225

Order # S3000X | Mfg # S3000X
$7,536.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Compact, high-strength uni-body construction provides a small operating radius without sacrificing endurance
  • 35° rotation angle and rapid return stroke for fast operation
  • Tough manifold design with added safety feature for enhanced operator safety
  • 360° click-on reaction arm with quick release lever provides easier handling, even when wearing gloves
  • Includes robust handle which mounts on both sides of tool for extra maneuverability
  • Push button square drive release for quickly reversing the square drive for tightening or loosening
  • Constant torque output provides accuracy of +/-3% across full stroke
  • Optional Angle-of-Turn Indicator provides measurement of rotation
  • ATEX declared. Calibration certificate included. All S-Series X-edition tools are CE - ATEX declared and are shipped complete with a calibration certificate.

Technical Resources

Specifications

Square Drive (in) 1
Nominal Torque Rated At 10,000 psi 690 bar
Maximum Torque Output (Ft.lbs) 3225
Maximum Torque Output (Nm) 4373
Minimum Torque Rated At 1000 psi 69 bar
Minimum Torque (Ft.lbs) 323
Minimum Torque (Nm) 437
Maximum Operating Pressure (psi) 10,000
Weight (lbs) 12.3
