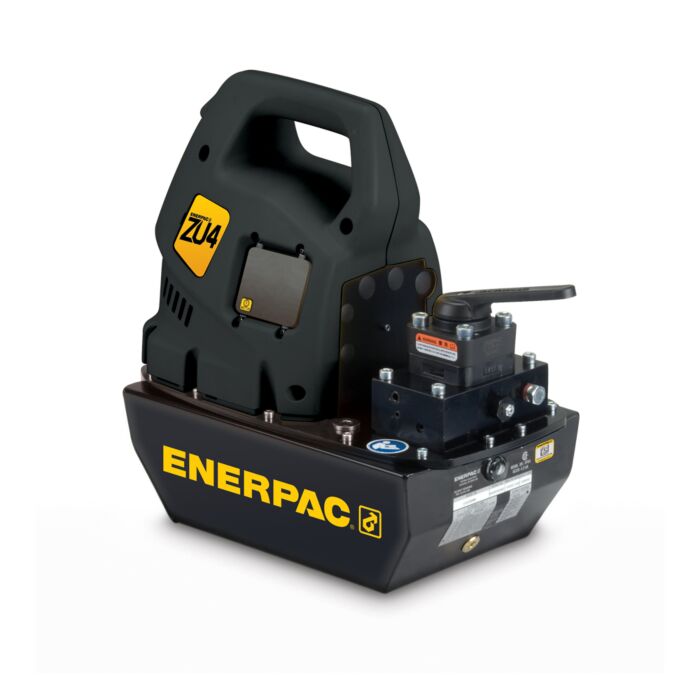

Enerpac ZU4308MB Electric Hydraulic Pump, Standard, 3/2 Manual Valve, 115V

Order # ZU4308MB

Mfg # ZU4308MB

800-828-1470

$6,416.00

Enerpac ZU4308MB Electric Hydraulic Pump, Standard, 3/2 Manual Valve, 115V

Order # ZU4308MB | Mfg # ZU4308MB

New

$6,416.00

Ships in 3-4 weeks

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Electric Hydraulic Pump, Standard, 3/2 Manual Valve, 115V, 2.0 gallon Usable Oil

Enerpac ZU Series Datasheet

Maximum Operating Pressure (psi)	10,000
Cylinder Compatability	Single-acting
Reservoir Capacity (in3)	416
Reservoir Capacity (gal)	2
Maximum Flow at Rated Pressure	60 in3/min
Output Flow Rate (in3/min) 100 psi	700
Output Flow Rate (in3/min) 700 psi	535
Output Flow Rate (in3/min) 5000 psi	76
Output Flow Rate (in³/min) 10000 psi	60
Motor Size (hp)	1.7
Motor Hertz	50/60 Hz
Motor Phases	1 Ph
Motor Voltage	115 V
Duty Cycle	Intermittent
Valve Function	Advance / Hold / Retract
Valve Operation	Manual
Valve Type	3-way, 3-position, Tandem Center
Valve Model	VM33
Power Source	Electric
Pump Control	Manual
Motor Electrical Specification	115 V, 1 Ph, 50/60 Hz
Sound Level (dBa)	85 - 90
Relief Valve Adjustment Range (psi)	2,000 - 10,000
Weight (lbs)	67
