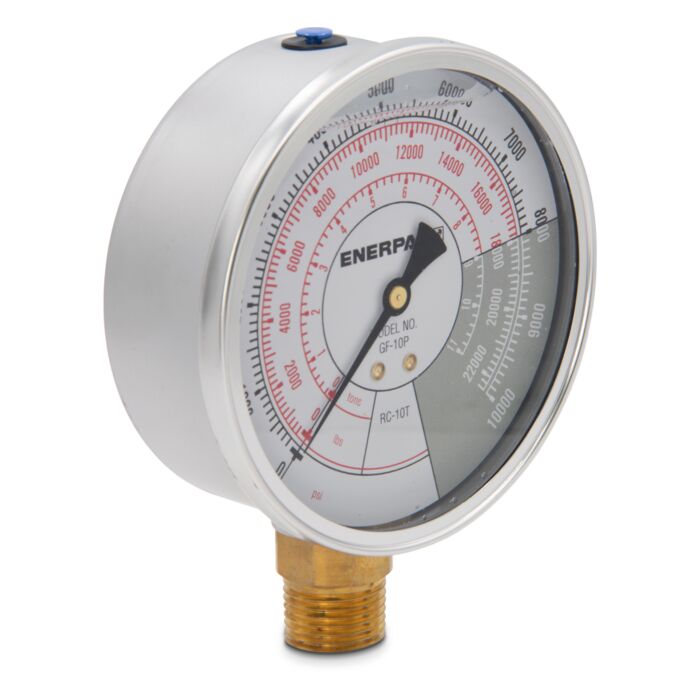

Enerpac GF10P Hydraulic Force and Pressure Gauge, Imperial Scale

Hydraulic Force and Pressure Gauge, Imperial Scale

Order #: GF10P

Mfg #: GF10P

Questions about availability or need help? Contact Us:

$459.00

Qty

Enerpac GF10P Hydraulic Force and Pressure Gauge, Imperial Scale

Hydraulic Force and Pressure Gauge, Imperial Scale

Order #: GF10P

Mfg #: GF10P

New

$459.00

Availability: Call for Availability

Hydraulic Force and Pressure Gauge, Imperial Scale, for use with 10 ton Cylinders

GF-Series gauges are calibrated with dual scales for reading for pressure and force.

The force readings allow you to measure external loads, such as those supported by a cylinder or jack, or the force used for pressing parts.

The glycerin within the gauge protects pressure sensing parts from vibration, sudden changes in pressure and from moisture.

The GF-Series Gauges feature a 4" (100 mm) diameter face for easy readability, and a stainless-steel casing for corrosion resistance.

Maximum Operating Pressure (psi)	10,000
Style	Glycerine Filled
Face Diameter (in)	4
Accuracy Percentage of Full Scale	1
Force (lbs)	0 - 22,200
Force (imperial tons)	0 - 11
Units Per Division	100 psi, 200 lbs, .2 ton
Mount	Lower Mount
Gauge Compatibility	All 10 ton RC, RSM, RCS, RR, RW Cylinders
Thread (in)	1/2 NPTF
Required Gauge Adaptor	GA1, GA2
Cylinder Series Compatibility	RC, RSM , RCS, RR, RW

Enerpac GF and GP Series Datasheet
