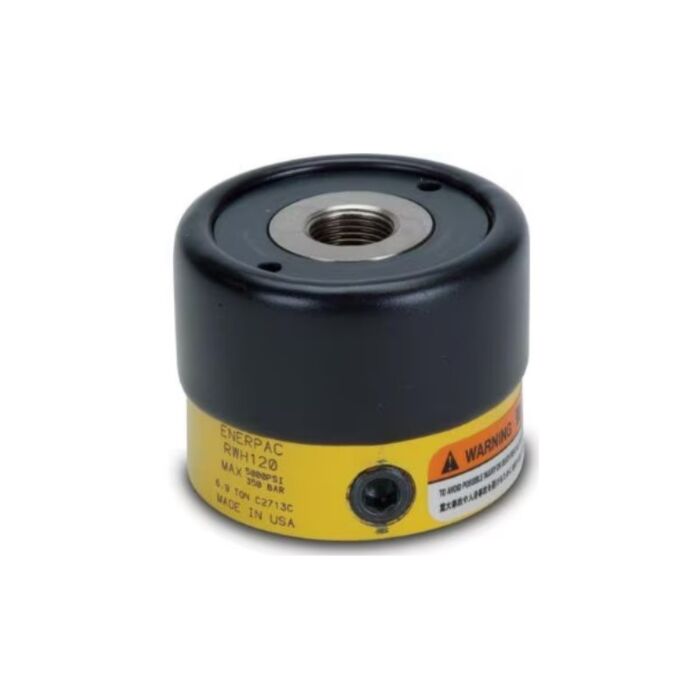

Enerpac RWH120 Hollow Plunger Hydraulic Cylinder, 13800 lbs, .32" Stroke
Hollow Plunger Hydraulic Cylinder,13800 lbs, .32" Stroke

Order #: RWH120

Mfg #: RWH120

Questions about availability or need help? Contact Us:

(800) 633-0561
$740.00

Enerpac RWH120 Hollow Plunger Hydraulic Cylinder, 13800 lbs, .32" Stroke

Hollow Plunger Hydraulic Cylinder,13800 lbs, .32" Stroke

Order #: RWH120

Mfg #: RWH120

$740.00
Availability: Ships in 3-4 weeks

Product Highlights

13800 lbs Capacity, 0.32 in Stroke, Hollow Plunger Hydraulic Cylinder

  • Load can be attached to either end of the cylinder, providing a choice of push or pull actions - both realizing full cylinder capacity
  • Very high cylinder capacities contained within small dimensions allow compact fixture designs
  • Spring return operation allows for easy unloading of the workpiece
  • Threaded collars and base mounting holes allow mounting flexibility, including table-top surfaces and T-slots
  • Nickel-plated plungers, plunger wipers and internal venting prevent corrosion and support longer operation life on all HCS models
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Maximum Operating Pressure (psi) 5,000
Maximum Cylinder Capacity Advance (lbs) 13,800
Stroke (in) 0.32
Return Type Single-Acting, Spring Return
Plunger Type Hollow
Material Steel
Cylinder Effective Area Advance (in2) 2.76
Oil Capacity Advance (in3) 0.86
Weight (lbs) 3.1
