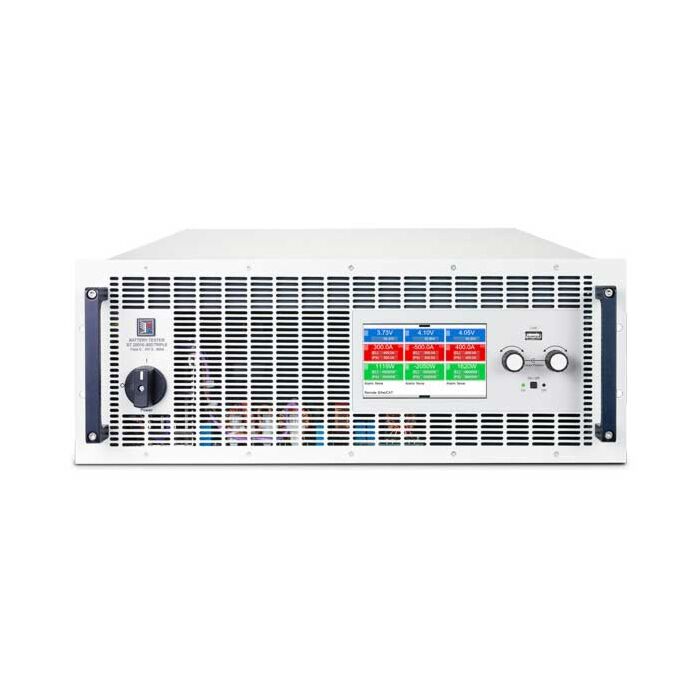

Elektro-Automatik BT20200-140 TRIPLE for Rent, Battery Tester, Triple Output, 200V, 140A (420A max), 30kW
Battery Tester, Triple Output, 200V, 140A (420A max), 30kW

Order #: BT20200-140-TRIPLE-RENT3

Mfg #: BT20200-140 TRIPLE

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Elektro-Automatik BT20200-140 TRIPLE for Rent, Battery Tester, Triple Output, 200V, 140A (420A max), 30kW

Battery Tester, Triple Output, 200V, 140A (420A max), 30kW

Order #: BT20200-140-TRIPLE-RENT3

Mfg #: BT20200-140 TRIPLE

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price

Product Highlights

The Elektro-Automatik BT20200-140 are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 95%. The output per channel of the battery tester with regenerative energy recovery BT20200-140 Triple with a DC voltage of up to 200 V allows positive and negative currents of up to 140 A as a two quadrant device. The flexible output stages (autoranging) provide the user with a wide voltage, current and power range and hence a wider field of working than traditional battery tester.

A typical application for the Elektro-Automatik BT20200-140 battery tester with regenerative energy recovery from Elektro-Automatik is the testing of the electrical characteristics of a battery. The wide application spectrum covers cell, module or pack tests, the determination of the SOH (State-of-Health) for a second life classification as well as the End-of-Line (EOL) test. These applications put many demands on power electronics which are fulfilled by the BT20200-140 range. The excellent features of this device range are: measurement of voltage and current with the required accuracy and performance, reproducibility and reliability of these data and the flexible usability. Additional applications include the simulation of batteries as single cells, modules, or packs. These simulations aid in the optimal configuration of energy storage as well as the supplied components under test.

Voltage Range 0 - 200 V
Current Range +/- 140 A (Per Ch.)
Max Power Range +/- 30kW
Efficiency Sink/Source (up to) 95.3 %
