The EA-10000 Series programmable DC power supplies bring a host of capabilities and efficiencies to your application. Active power factor correction minimizes waste drawn from your power grid. True autoranging allows the delivery of maximum power along a wider range of voltage and current values while a suite of optional control interfaces enables computer control in near any manufacturing environment.
The EA PS and PSI programmable power supplies range in power from 1500W devices up to 30kW in a single chassis and feature 5" TFT Gorilla® Glass touchscreen displays for intuitive control and test setup. The power supplies can be paralleled for up to 3.84MW in output power at up to 2000VDC. The PSI Series comes standard with a built-in function generator capable of creating arbitrary waveforms, included test routines for battery test, fuel cell simulation, PV solar array simulation with MPP tracking, and other enhanced capabilities over the PS Series.

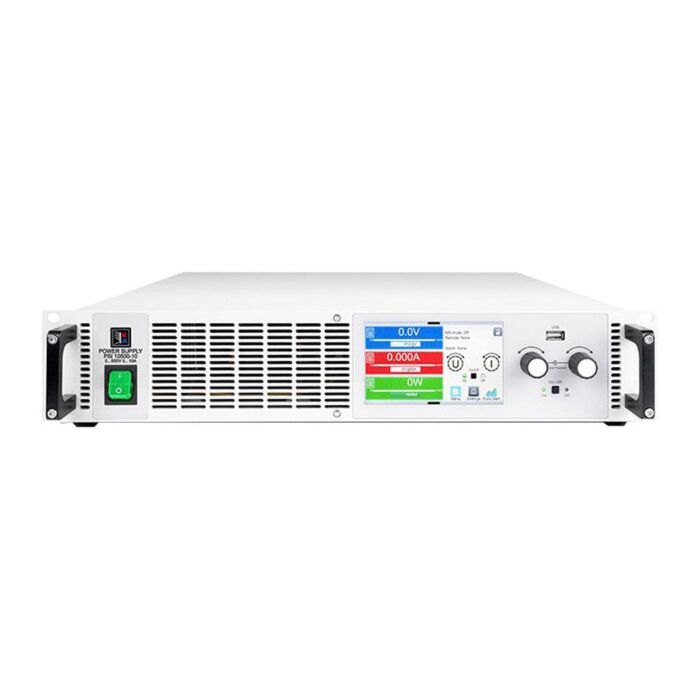

EA-PSI-91500303U208V is a high-power, programmable DC laboratory power supply manufactured by EA Elektro-Automatik, delivering up to 15 kW of power with an output range of 0 to 1500V and 0 to 30A.
- 208VAC input, output power of 15KW
- Voltage range from 0 to 500VDC, current rating from 0 to 30A
- Auto-ranging output stage
- Various protection circuits (OVP, OCP, OPP, OTP)
- Control panel with pushbuttons and color TFT for actual values, set values, status and alarms
- Galvanically isolated, analog interface
- Temperature-controlled fans for cooling
- USB and Ethernet port integrated or alternatively installed GPIB port
- SCPI and ModBus RTU/TCP command set, LabView VIs and control software for Windows
Applications
- Battery Cycling and Testing
- Electric Vehicle (EV) Development
- Hydrogen Technology
- Solar Energy Simulation
- General Laboratory & Burn-in Testing
Each Unit Includes
- DC Power Supply 1500V, 30A, 15 kW, Slave (EA-PSI-91500303U208V)
- 1 x power supply device
- 2 x remote sensing plugs
- 1 x 1.8m USB cable
- 1 x set of DC input covers
- 1 x sense terminal cover
- 1 x USB stick with documentation and software
- 1 x AC connector plug (clamp type)
- 1 x set for AC cable strain relief
