The EA-10000 Series programmable DC power supplies bring a host of capabilities and efficiencies to your application. Active power factor correction minimizes waste drawn from your power grid. True autoranging allows the delivery of maximum power along a wider range of voltage and current values while a suite of optional control interfaces enables computer control in near any manufacturing environment.
The EA PS and PSI programmable power supplies range in power from 1500W devices up to 30kW in a single chassis and feature 5" TFT Gorilla® Glass touchscreen displays for intuitive control and test setup. The power supplies can be paralleled for up to 3.84MW in output power at up to 2000VDC. The PSI Series comes standard with a built-in function generator capable of creating arbitrary waveforms, included test routines for battery test, fuel cell simulation, PV solar array simulation with MPP tracking, and other enhanced capabilities over the PS Series

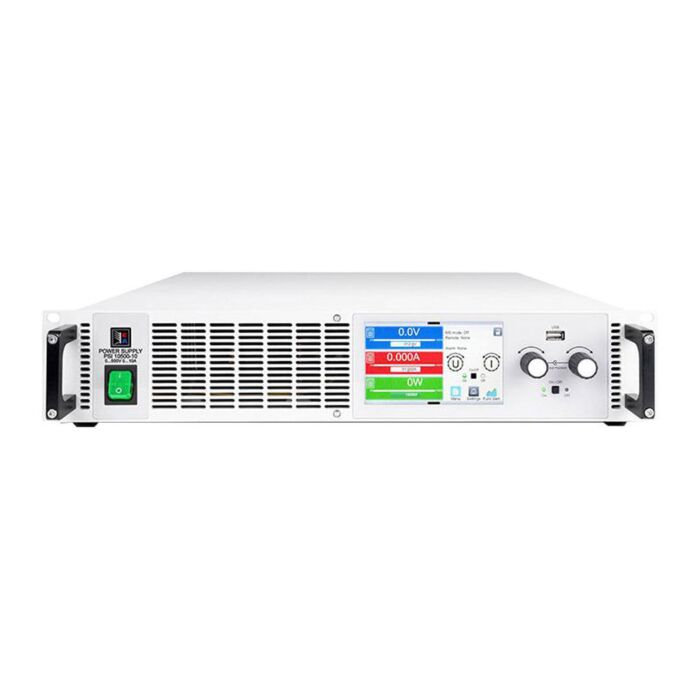

EA-PSI 10920-40 3U is a programmable power supply able to deliver up to 920V and 40A with a power of 10000W. The EA-PSI 10920-40 3U has a high resolution with 16 bit ADCs.The power supply has a built-in function generator with multiple pre-configured waveforms. The device has multiple protective functions such as OPP, OCP, OVP and OTP and several included interfaces and multiple other interfaces are optional. The EA-PSI 10920-40 3U has temperature-controlled cooling that reduces the noise produced by adjusting the fan speed to the temperature inside the power supply. This power supply offers flexible "auto-ranging" which allows the power supply to offer a high current or a high voltage within the power offered. Additionally, the power supply can simulate batteries as single cells for optimal configuration of energy storage and you can program simulation models for solar cells including shadow, temperature and clouds. Finally, the power supply has a 5" TFT touchscreen display with an intuitive user interface.
- Active power factor correction, typical 0.99
- Flexible power regulated DC output stage (auto-ranging)
- Regulation modes of CV, CC, CP, and CR with fast crossover
- Protective functions include OVP (Overvoltage), OCP (Overcurrent), OPP (Overpower), and OT (Overtemperature) protection
- Digital regulation, high resolution with 16-bit ADCs and DACs, selection of control speed
- 5 in. color TFT display with touch control and intuitive user interface
- Galvanically isolated Share-bus for parallel operation of all power classes in 10000 Series Power Supplies
Applications
- Photovoltaic and Solar Testing
- Energy Storage & Battery Simulation
- Research and Development (R&D)
- Industrial Manufacturing & QA
Each Unit Includes
- Laboratory power supply 10KW 920V 40A 3U US208V (EA-PSI-10920-40-3U)
- 2 - Remote sensing plugs
- 1 - 1.8 m (5.9 ft) USB cable
- 1 - Set of DC terminal covers
- 1 - Sense terminal cover
- 1 - AC Connector Plug, Clamp-Type
- 1 - AC Cable Strain Relief
- 1 - USB stick with documentation and software
