The EA-10000 Series programmable DC power supplies bring a host of capabilities and efficiencies to your application. Active power factor correction minimizes waste drawn from your power grid. True autoranging allows the delivery of maximum power along a wider range of voltage and current values while a suite of optional control interfaces enables computer control in near any manufacturing environment.
The EA PS and PSI programmable power supplies range in power from 1500W devices up to 30kW in a single chassis and feature 5" TFT Gorilla® Glass touchscreen displays for intuitive control and test setup. The power supplies can be paralleled for up to 3.84MW in output power at up to 2000VDC. The PSI Series comes standard with a built-in function generator capable of creating arbitrary waveforms, included test routines for battery test, fuel cell simulation, PV solar array simulation with MPP tracking, and other enhanced capabilities over the PS Series

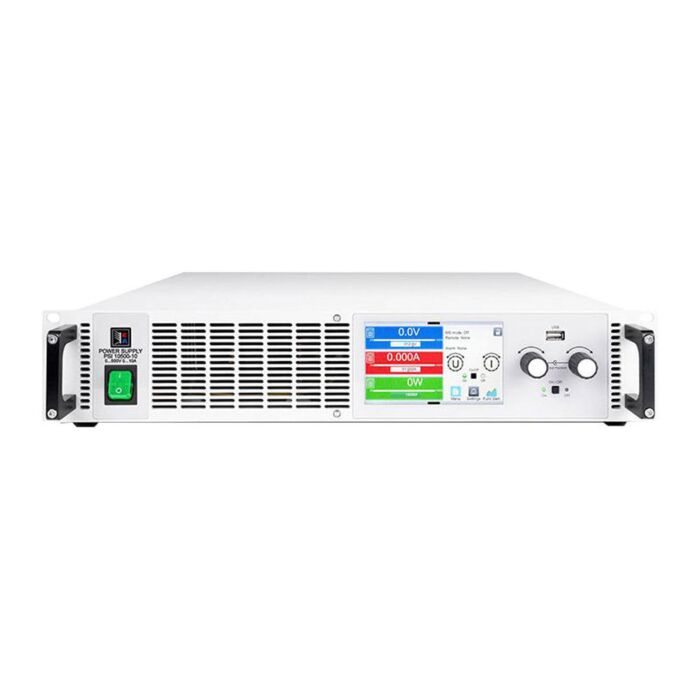

EA-PSI 10060-170 3U is a PSI 10000 3U series programmable DC power supply. The DC laboratory power supply convert the energy from the grid into a regulated DC voltage with a high efficiency. The DC supply operates as a flexible output stage with a constant power characteristic (auto ranging), and a wide voltage, current range. To achieve higher power and current unit is equipped with a host-server bus. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions.
- Wide range input, 208VAC - 480VAC +10 % 3ph
- Active power factor correction, typical 0.99
- Power range from 0 - 5000W
- Voltage rating range from 0 - 60VDC
- Current rating range from 0 - 170A
- Regulation mode CV, CC, CP with fast crossover
- Digital regulation, high resolution with 16bit ADCs and DACs, selection of speed: normal, fast, slow
- Color 5" TFT display with touch control and intuitive user interface
- Photovoltaics test mode
- Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
Applications
- Automated Test Systems (ATE)
- Research and Development (R&D) Labs
- Battery Testing and Charging
- Solar Inverter Testing
- Industrial Equipment Powering
Each Unit Includes
- DC Power Supply 5KW 60V 170A (EA-PS-10060-170-3U)
- 2 - Remote sensing plugs
- 1 - 1.8 m (5.9 ft) USB cable
- 1 - Set of DC terminal covers
- 1 - Sense terminal cover
- 1 - USB stick with documentation and software
- 1 - AC connector plug (clamp type)
- 1 - Set for AC cable strain relief
