The EA-10000 Series programmable DC power supplies bring a host of capabilities and efficiencies to your application. Active power factor correction minimizes waste drawn from your power grid. True autoranging allows the delivery of maximum power along a wider range of voltage and current values while a suite of optional control interfaces enables computer control in near any manufacturing environment.
The EA PS and PSI programmable power supplies range in power from 1500W devices up to 30kW in a single chassis and feature 5" TFT Gorilla® Glass touchscreen displays for intuitive control and test setup. The power supplies can be paralleled for up to 3.84MW in output power at up to 2000VDC. The PSI Series comes standard with a built-in function generator capable of creating arbitrary waveforms, included test routines for battery test, fuel cell simulation, PV solar array simulation with MPP tracking, and other enhanced capabilities over the PS Series

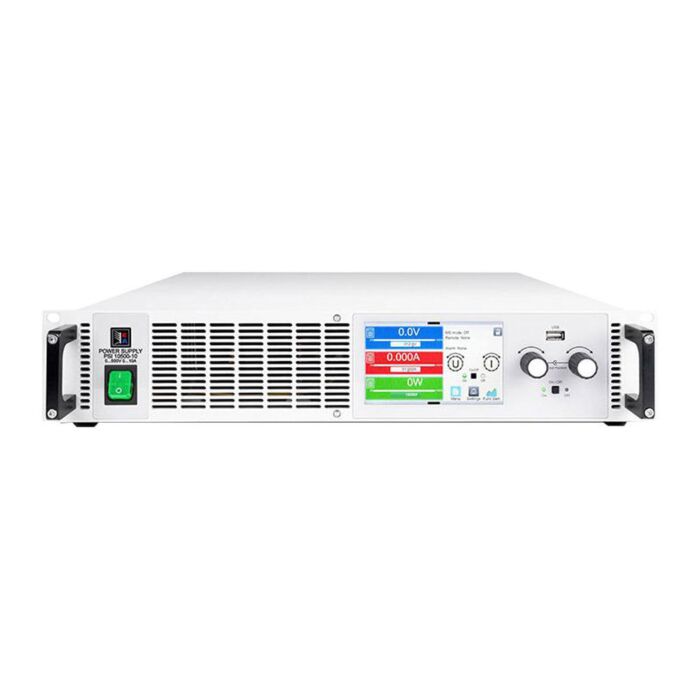

EA-PSI 10080-120 2U is a PSI 10000 2U series programmable DC power supply which converts the energy from the grid into a regulated DC voltage with a high efficiency. The DC supply operates as a flexible output stage with a constant power characteristic (auto ranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a host-server bus. Furthermore, typical laboratory functionality is provided. This includes an extensive function generator, alarm and warning management, assorted interfaces and ports, software solutions and many more functions.
- Wide range input, 110VAC - 240VAC +10 % 1ph
- Active power factor correction, typical 0.99
- Power range from 0 - 3000W
- Voltage range from 0 to 80VDC
- Current range from 0 to 120A
- Regulation mode CV, CC, CP, CR with fast crossover
- Digital regulation, high resolution with 16bit ADC & DACs, selection of speed: normal, fast, slow
- Colour 5" TFT display with touch control and intuitive user interface
- Galvanically isolated share-bus for parallel operation of all power classes in the 10000 series
Applications
- Research and Development (R&D)
- Photovoltaic (PV) / Solar Simulation
- Battery and Fuel Cell Testing
- Industrial Component Testing
- Automated Production Lines
Each Unit Includes
- DC Power Supply 80V 120A 3KW (EA-PSI 10080-120 2U)
- 1 - power supply
- 2 - remote sensing plugs
- 1 - 1.8m USB cable
- 1 - set of DC terminal covers
- 1 - sense terminal cover
- 1 - USB stick with documentation and software
- 1 - cable tie for strain relief
