The EA-10000 Series programmable DC power supplies bring a host of capabilities and efficiencies to your application. Active power factor correction minimizes waste drawn from your power grid. True autoranging allows the delivery of maximum power along a wider range of voltage and current values while a suite of optional control interfaces enables computer control in near any manufacturing environment.
The EA PS and PSI programmable power supplies range in power from 1500W devices up to 30kW in a single chassis and feature 5" TFT Gorilla® Glass touchscreen displays for intuitive control and test setup. The power supplies can be paralleled for up to 3.84MW in output power at up to 2000VDC. The PSI Series comes standard with a built-in function generator capable of creating arbitrary waveforms, included test routines for battery test, fuel cell simulation, PV solar array simulation with MPP tracking, and other enhanced capabilities over the PS Series

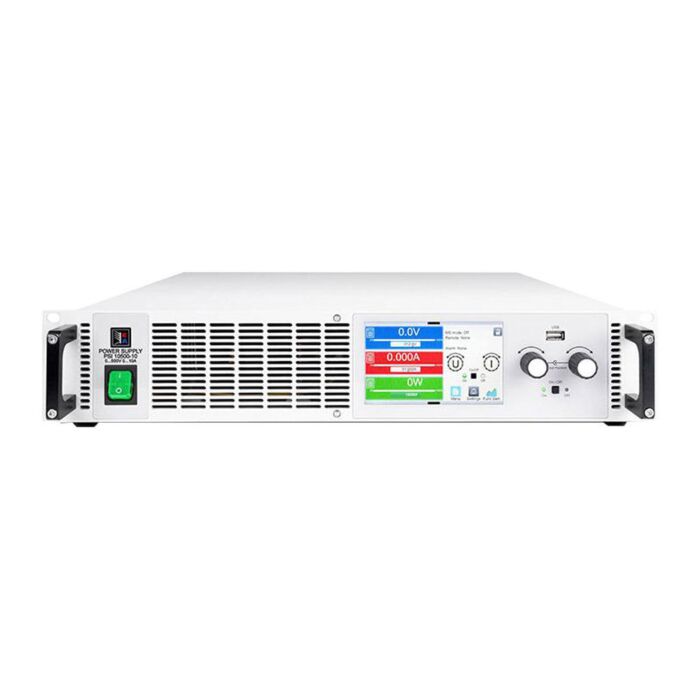

EA-PS 9500-10 1U is a EA-PS 9000 1U microprocessor-controlled laboratory power supply offers many functions and features in their standard version, making the use of this equipment remarkably easy and most effective. All this comes in a flat design with only 44 mm (1.75") of height. The clearly arranged control panel features two rotary knobs, six pushbuttons and two LEDs. Together with an illuminated, blue LCD display for all values and status it simplifies the use of the device.
- 100 to 264VAC, 1ph+N input, output power of 1.5KW
- Voltage range from 0 to 500VDC, current rating from 0 to 10A
- Flexible, power regulated output stage
- Various protection circuits (OVP, OCP, OPP, OTP)
- Control panel with pushbuttons and blue LCD for actual values, set values, status and alarms
- Remote sensing
- Share bus for support of parallel connection
- Very low height of only 1U (44mm)
- Temperature controlled fans for cooling
- USB and Ethernet port integrated, EMC according to EN 55022 Class B, SCPI command language supported
Applications
- Automated Test Systems
- Battery and Energy Testing
- Research and Development (R&D)
- Industrial Manufacturing
Each Unit Includes
- DC Power Supply 1500W 500V 10A (EA-PS-9500-10-1U)
- 2 - Remote sensing plugs
- 1 - 1.8 m (5.9 ft) USB cable
- 1 - Set of DC terminal covers
- 1 - Sense terminal cover
- 1 - AC Cable Strain Relief
- 1 x AC connector plug (clamp type)
- 1 - USB stick with documentation and software
