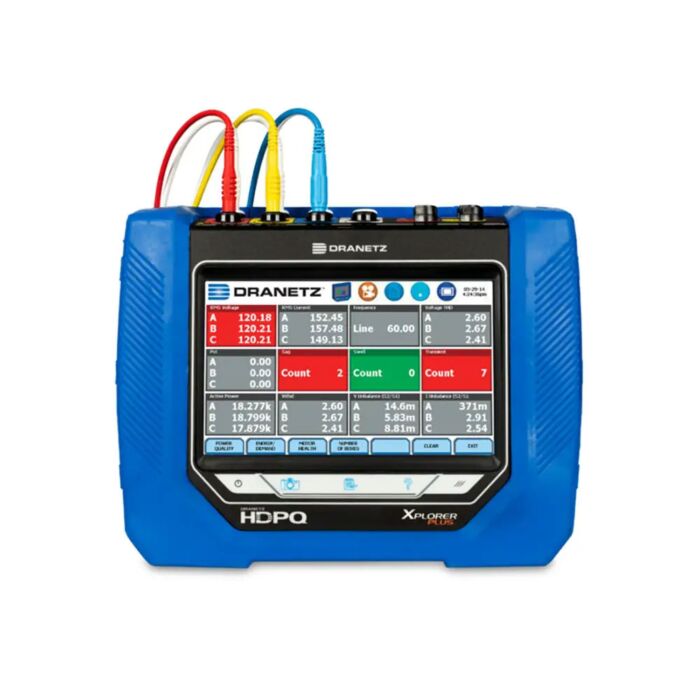

Dranetz HDPQ-P-X4APKG HDPQ Xplorer 400 Plus Power Quality Analyzer Package, No Probes/Transformers

The Dranetz HDPQ Xplorer Plus (portable) power quality analyzer represents the top of the line in the Dranetz HDPQ Plus family of products. It is a true hand-held portable instrument with a built in 7", tablet-like touch LCD display and is simply the best PQ monitor available from Dranetz, or any other manufacturer! The Dranetz HDPQ Xplorer Plus includes all of the features of the Dranetz HDPQ Visa Plus and Guide Plus power quality instruments but adds high speed transient capture capabilities to 1us so you'll never miss an event!

The Dranetz HDPQ Xplorer Plus offers best in class PQ monitoring capabilities. It measures to all current industry standards, including IEC 61000-4-30 Class A Edition 3, IEC 61000-4-7, IEEE 1159, IEEE 519:2014, IEEE 1459, and more. With its high-speed transient data capture (1 microsecond/channel) capabilities, this 8-channel workhorse won't miss a PQ event. It simultaneously captures and characterizes thousands of parameters by using a range of standard and customizable operating modes. The unique measurement capabilities include the capture of low-medium-high frequency transients through peak, waveshape, rms difference and adaptive high-speed sampling, as well as power measurements to clearly characterize harmonics, non-sinusoidal, and unbalanced systems. The Intelligent AnswerModule feature provides consultant-like analysis of sag directivity, capacitor switching transient identification/directivity and motor analysis/reporting.

The Dranetz HDPQ Xplorer Plus enables users to review data and change settings remotely from virtually any smartphone, tablet and mobile device, as well as with traditional PC and MAC laptops and desktops. Just hook up the instrument, close the cabinets to the 'safe' environment, and review data and control the instrument using either the VNC interface in our Dran-View 7 software or a free VNC client on your Smartphone or Tablet from anywhere with connectivity to the instrument.

Precision

High Definition PQ & Energy Monitoring - 1000Vrms, AC/DC, 512 samples/cycle
IEC 61000-4-30 Class A Edition 3 & IEEE 1159 compliant
High Speed Digitized Transients - 1us, 10 to 2000Vpk
Transient triggers - V & I - waveshape triggers, high speed. Well beyond PQ standards requirements
Eight channels, 4 voltage & 4 current
AnswerModules - Sag directivity, PF capacitor identification, motor - automatic event categorization
Harmonics - IEC 61000-4-7, IEEE 519:2014
IEEE 1459 Advanced Power Measurements
10,000 cycle pre/post trigger buffer
EN 50160 Ed 3

< p>Communications

Ethernet, Wi-Fi, USB, Bluetooth (optional)
Dran-View 7 (Windows PC) VNC full remote control & data downloading
Apple & Android full remote control using VNC

Safe & Rugged

UL/cUL listed and CE certified
Improved Arc Flash Safety using remote communications
Rugged enclosure with an easy to grip, shock absorbing, non-conductive boot
Drop tested to 6'
Wire management in easel and hook

User Interface

7" WVGA color touch display
Automatic setups - PQ, Demand and Energy
Tablet-like GUI that is icon driven, has taskbar shortcuts, and a Dashboard

Productivity

Full remote control - No need to visit the site
PQ & Energy Dashboard's for real time alarming
Bigger display for more productive local analysis
AnswerModules - automatic event categorization
Dran-View 7 power quality analysis software - Powerful analysis, reporting and remote control
Rescue kit - Part of Dran-View 7. Correct problems with wiring, CT orientation, time errors and more
Post processing - Part of Dran-View 7. Compute harmonics and other parameters from the waveforms recorded by the instrument
