Digi-Sense 08516-60

Product Highlights

• These probes are designed to measure surface temperature without penetrating the surface
• Ideal for monitoring flat surfaces such as hot plates, furnaces, or molds
• Response Time: 1.25 seconds or greater
• Each probe comes with color coded ANSI coiled cable: type J-black, type K-yellow, type T-blue, and type E-purple.
• Custom designs or changes to this product are available upon request.
• Probe Type: K
• Min Temperature (° F): -250
• Max Temperature (° F): 1200
• Min Temperature (° C): -150
• Max Temperature (° C): 649
• Temperature Accuracy: ±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
• Junction: Exposed
• Connector Type: Mini ANSI
• Sheath material: 316 Stainless Steel shaft w/aluminum housing
• Handle Material: ABS plastic
• Sheath Length (in): 10
• Handle Length (in): 5.5
• Cable Type: Coiled
• Cable Length (in): 60

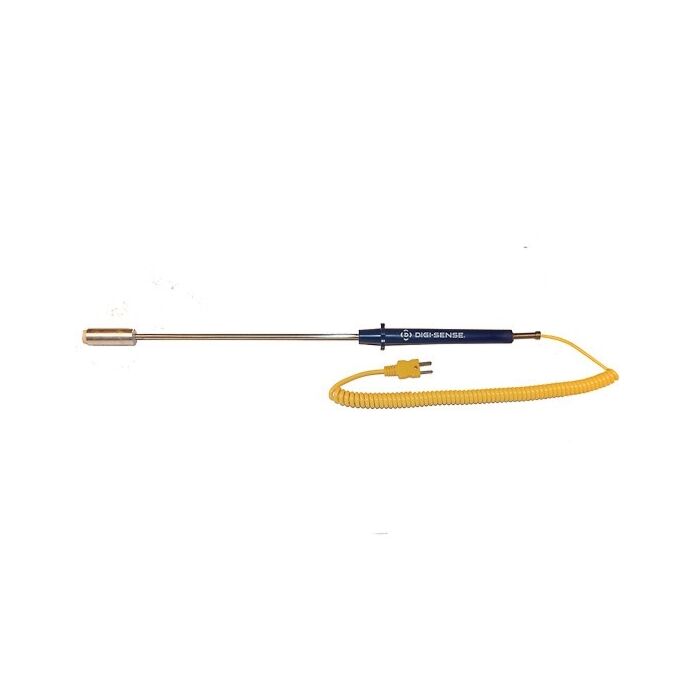

• Description: Type-K, Straight Surface Probe, 10" L, Mini Conn, Exp, 5ft Coil Cord
