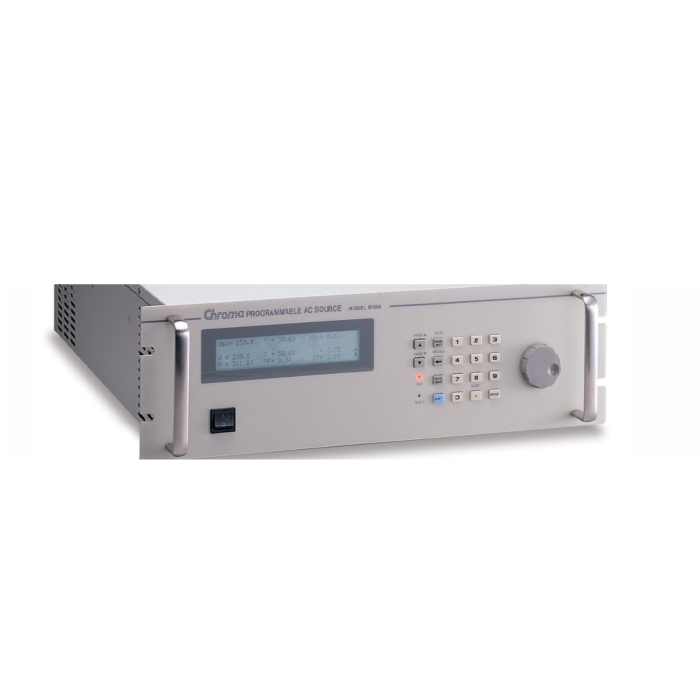

Used Chroma 61504 Programmable AC Source, 300V/15-1KHz/2KVA
Programmable AC Source 300V/15-1KHz/2KVA

Order #: 61504-USED

Mfg #: 61504

Questions about availability or need help? Contact Us:

(800) 633-0561
$8,499.00

Used Chroma 61504 Programmable AC Source, 300V/15-1KHz/2KVA

Programmable AC Source 300V/15-1KHz/2KVA

Order #: 61504-USED

Mfg #: 61504

$8,499.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Ships in 3-4 weeks
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

Programmable AC Source 0-300V, 15Hz-1kHz / 2kVA with option: A615001 = Remote Interface Board: External V Input, GPIB, RS-232, Analog. It equips with all the powerful features such as power line disturbance simulation, programmable output impedance, comprehensive measurement function, wave-shape synthesis and regulation test software. Chroma also provides software for aerospace testing, including MIL-STD-704F, RTCA DO-160D, ABD100.

Using the state-of-the-art PWM technology, the Chroma 61500 AC source is capable of delivering up to 6 times of peak current (Model 61501~61505) versus to its maximum rated current which makes it ideal for inrush current testing.

  • 61504 : Programmable AC Source 0~300 V, 15~1 kHz / 2 kVA
  • Output rating power: 2000 VA
  • Voltage range: 0-300 V
  • Compact size and weight attributable to advance PWM Technology
  • AC+DC output mode for voltage DC offset simulation
  • Programmable output impedance for IEC 61000-3-3
  • IEC 61000-4-11, IEC 61000-4-14, IEC 61000-4-28 voltage dips and frequency variation simulation
  • Harmonics, interharmonics waveform synthesizer for IEC 61000-4-13 testing
  • Power line disturbance simulation capability
  • Programmable voltage and current limit settings
  • Comprehensive measurement capability, including current harmonics
  • High output current crest factor, ideal for inrush current testing
  • Turn on, turn off phase angle control
  • TTL signal which indicates output transient
  • Optional analog programmable Interface
  • Easy use graphic user interface: softpanel (option)
  • Softpanel for IEC regulation test
  • Capable of delivering power output up to 90 KVA by implementing master-slave parallel operation
