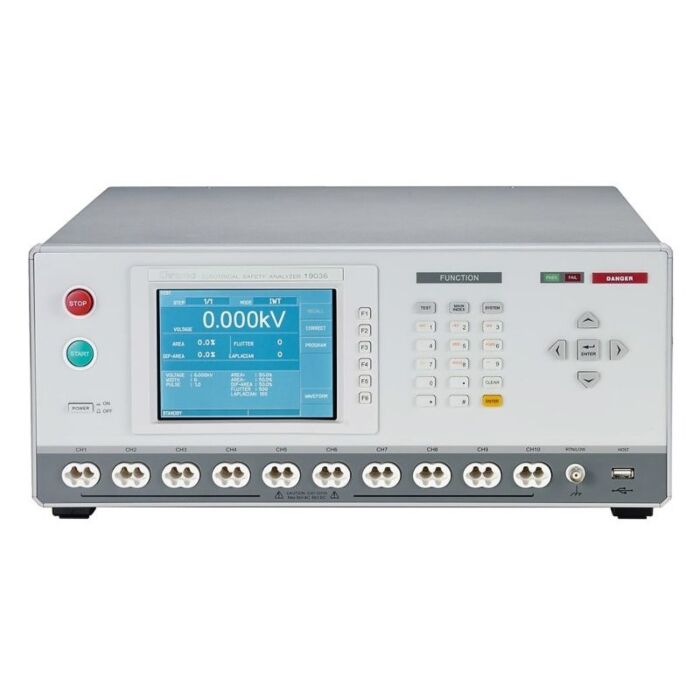

Chroma 19036 for Rent, Wound Component Electrical Safety Test Analyzer
Order #19036-RENT3|Mfg #19036
For Rent
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Have a Question?
Speak to a Transcat Rental Expert at 800.264.4059
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
The Chroma 19036 Wound Component Electrical Safety Test (EST) Analyzer uniquely combines the functions of impulse test, hipot, insulation resistance and DC resistance measurements. It is suitable for testing large leakage current or big electrical safety equipment and can perform safety tests on wound components like motors, transformers and solenoid valve to verify their quality. The Chroma 19036 as a comprehensive tester integrated with high power hipot test and other safety tests can bring the maximum benefit to the production line as well as to quality assurance.
Features and Specifications of the Chroma 19036 Wound Component EST Analyzer include:
Features:
10 Channels
5 in 1 composite analyzer: ACWV, DCWV, IR, Impulse, DCR
Hi-pot test:
5kVac / 6kVdc
HSCC (High Speed Contact Check)
500 VA output
Insulation Resistance test:
5kV Maximum
Impulse Winding Test (IWT):
6kV impulse voltage
High sampling rate (200MHz)
DCR measurement:
4-wire DCR measurement
_ / Y motor winding calculation
Support maximum 40 channels scanning test
USB waveform storage & hard copy function
Graphic color display
Standard LAN, USB, RS232 interface
GFI (Ground Fault Interrupt) for body protection
Product Applications:
From EV motors, servomotors, ascension motors to fans, all rotary motor products need to perform impulse test, hi-pot and DCR measurements to ensure product quality
DCR measurement is in 4-wire type
Each terminal has Drive and Sense
10 independent channels for scanning
Can test 3 DUTs at once to increase productivity
Each channel can be set to Hi/Lo/Open respectively
Specifications:
AC/DC Withstanding Test:
Output Voltage:
AC: 0.05 - 5.0kV
DC: 0.05 - 6.0kV
Load Regulation: ≤ (1% of output+0.1% of full scale)
Voltage Accuracy: +/- (1% of setting+0.1% of full scale)
Voltage Resolution: 2V
Cutoff Current:
AC: 0.001mA - 120mA(Voltage≤4kV)
AC: 0.001mA - 100mA(Voltage>4kV)
DC: 0.0001mA - 20mA
Current Accuracy: +/- (1% of reading+0.5% of range)
Test Timer:
Test time:0.3 - 999 sec., and continue
Ramp/ Fall/Dwell time:0.1 - 999 sec., and off
Output Frequency: 50Hz / 60Hz (for AC)
Waveform: Sine wave (for AC)
Insulation Resistance Test:
Output Voltage:
DC: 0.050 - 5.000kV
Steps: 0.002kV
Load Regulation: ≤(1%of output+0.1%of full scale)
Voltage Accuracy: +/-(1%of setting+0.1%of full scale)
IR Range: 0.1MOhm - 50GOhm
Resistance Accuracy:
>1kV:
1Mohm - 1GOhm: +/-(3% of reading+0.1% of full range)
1Gohm - 10GOhm: +/-(7% of reading+2% of full range )
10Gohm - 50GOhm: +/-(10% of reading+1% of full range)
≥0.5kV and ≤1kV:
0.1Mohm- 1GOhm: +/-(3% of reading+0.1% of full range)
1Gohm - 10GOhm: +/-(7% of reading+2% of full range )
10Gohm - 50GOhm: +/-10% of reading+1% of full range)
Impulse Winding Test:
Applied Voltage: 0.5 - 6kV
Step: 10V
Energy: ,Max 0.21 Joules
Induction Test Range: More than 10uH
Sampling Speed: 10bit/ 5ns(200MHz)
Sampling Range: 11 Ranges
Pulse Number:
Pulse Number: 1 - 32
Dummy Pulse Number: 0 - 9
Detection Mode: Area /Differential Area: Flutter/ Laplacian Detection
DC Resistance Measurement:
Test Signal:
Measurement Range: 0.1mOhm - 500kOhm
Measurement Accuracy:
100m Ohm: +/- (0.5% of reading + 1% of full range)
1 Ohm: +/- (0.5% of reading + 0.2% of full range)
10 Ohm: +/- (0.5% of reading + 0.05% of full range)
100Ohm: +/- (0.5% of reading + 0.05% of full range)
1kOhm: +/- (0.5% of reading + 0.05% of full range)
10kOhm: +/- (0.5% of reading + 0.05% of full range)
100kOhm: +/- (0.5% of reading + 0.05% of full range)
