Order #: 20733253
Mfg #: 20733253

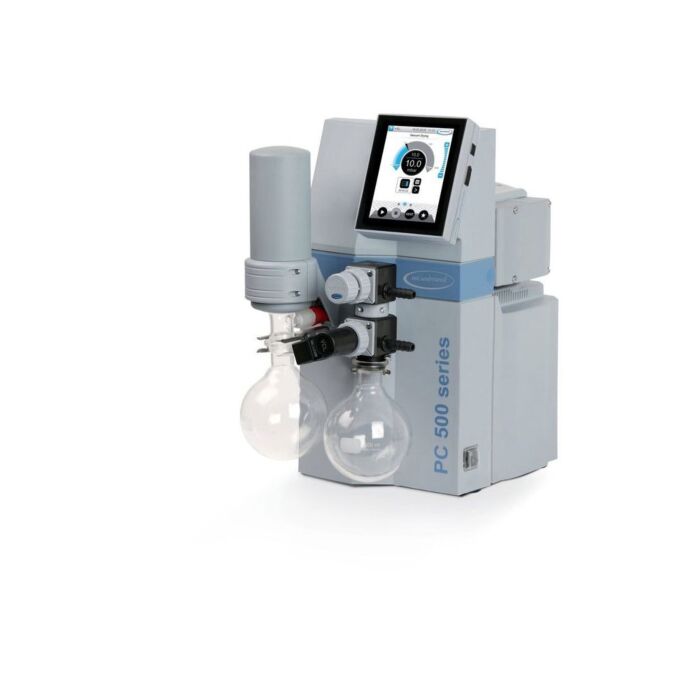

BrandTech Scientific PC 511 SELECT
Order #: 20733253
Mfg #: 20733253
Product Highlights
The PC 511 select is an economical, compact solution for simultaneously running two independent vacuum applications with a single pump. Our popular MZ 2C NT two stage chemistry diaphragm pump is the heart of these pumping units, frequently used for medium-sized vacuum applications involving common solvents. With an intuitive, application-based interface, the VACUUSELECT controller offers predefined vacuum processes for all common laboratory applications. The VACUUSELECT controller has you covered. Use manual set-point-control for simple processes, run distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the electronically controlled port detects the boiling pressure and switches to two point control to hold pressure steady when a boiling point is detected. A second, manually controlled vacuum port permits simultaneous operation of a second vacuum application on the same pump. The inlet separator, made of glass with a robust protective coating, prevents particles and liquid droplets from entering the pump, preventing damage and extending pump life. And the exhaust vapor condenser allows for nearly complete recovery of solvents when used with a chilled water line or recirculating chiller for economical recycling and environmental protection.
- VACUUSELECT vacuum controller with graphical user interface simplifies work in the laboratory
- Predefined applications save time and give reproducible results
- Easy-to-use application editor allows own process sequences
- Powerful vacuum pump with excellent chemical and condensate compatibility
- PC 511 select allows simultaneous operation of two independent vacuum applications
Technical data and graphs
Max. pumping speed 50 Hz | 2 m³/h |
Max. pumping speed 60 Hz | 1.4 cfm |
Ultimate vacuum | 7 mbar / 5 torr |
Ultimate vacuum with gas ballast | 12 mbar / 9 torr |
Number of heads | 2 |
Number of stages | 2 |
Vacuum controller | VACUUSELECT |
Lower ambient temperature (operation) | 10 °C |
Upper ambient temperature (operation) | 40 °C |
Lower ambient temperature (storage) | -10 °C |
Upper ambient temperature (storage) | 60 °C |
Max. back pressure (abs.) | 1.1 bar |
Inlet connection | 2 x hose nozzle DN 8-10 mm |
Outlet connection | Hose nozzle DN 8-10 mm |
Coolant connection | 2 x hose nozzle DN 6-8 mm |
Rated motor power | 0.18 kW |
Rated motor speed at 50/60 Hz | 1500/1800 min-1 |
Protection class IEC 60529 | IP 20 |
Dimension L in mm | 435 mm |
Dimension B in mm | 272 mm |
Dimension H in mm | 457 mm |
Weight | 18.1 kg |
Noise (sound pressure level) in dBA | 45 dBA at 50 Hz or 1500 rpm |
NRTL certification | No |
Items supplied | Pumping unit completely mounted, ready for use, with manual. |
Rated mains voltage range 1 | 100-115 V |
Rated mains voltage range 2 | 120 V |
Mains frequency 1 | 50-60 Hz |
Mains frequency 2 | 60 Hz |
Interface | Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required) |
