Order #: 20734203
Mfg #: 20734203

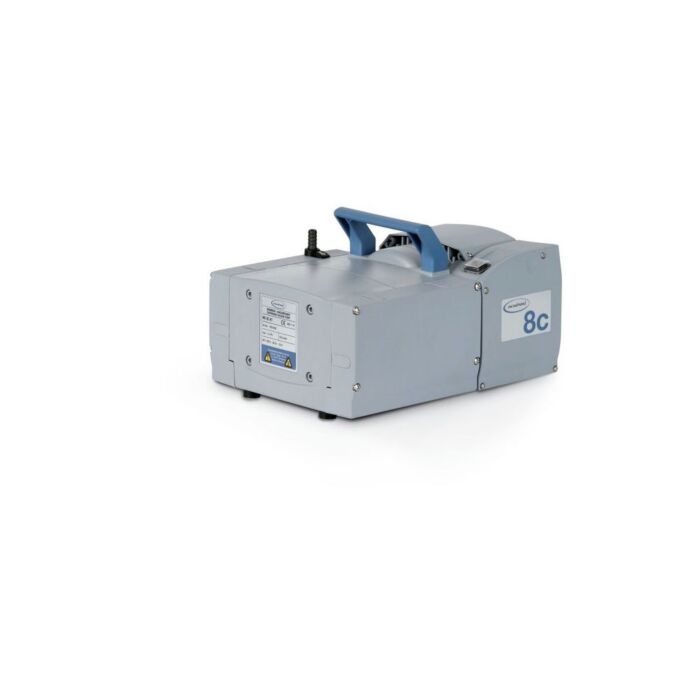

BrandTech Scientific ME 8C NT
Order #: 20734203
Mfg #: 20734203
Product Highlights
Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. These large pumps have an exceptionally high pumping speed. The NT-series features further improved performance data and superior vapor tolerance. Large one-stage chemistry-design diaphragm pumps are an excellent choice for pumping large amounts of gases and vapors. They do not consume water and therefore do not produce any contaminated waste water. Typical applications are degassing of liquids, multiport filtrations e. g. on vacuum networks and in general evaporation of low boiling solvents. We recommend these pumps especially for processes with large gas flow at high process pressures.
- Outstanding chemical resistance and superior vapor tolerance
- Exceptionally high performance even at low vacuum
- Compact design
- Whisper quiet and very low vibration
- Long diaphragm life, maintenance-free drive system
Technical data and graphs
Max. Pumping Speed 50 Hz | 7.1 m³/h |
---|---|
Max. Pumping Speed 60 Hz | 4.6 cfm |
Ultimate Vacuum | 70 mbar / 52 torr |
Number of Heads | 4 |
Number of Stages | 1 |
Lower Ambient Temperature (Operation) | 10 °C |
Upper Ambient Temperature (Operation) | 40 °C |
Lower Ambient Temperature (Storage) | -10 °C |
Upper Ambient Temperature (Storage) | 60 °C |
Max. Back Pressure (abs.) | 1.1 bar |
Inlet Connection | Hose Nozzle DN 8-10 mm |
Outlet Connection | Hose Nozzle DN 8-10 mm |
Rated Motor Power | 0.25 kW |
Rated Motor Speed at 50/60 Hz | 1800 min-1 |
Protection Class IEC 60529 | IP 40 |
Dimension L (mm) | 328 mm |
Dimension B (mm) | 243 mm |
Dimension H (mm) | 198 mm |
Weight | 14.3 kg |
Noise (dBA) | 45 dBA |
NRTL Certification | Yes |
Items Supplied | Pump completely mounted, ready for use, with manual. |
Rated Mains Voltage Range 1 | 120 V |
Mains Frequency 1 | 60 Hz |
