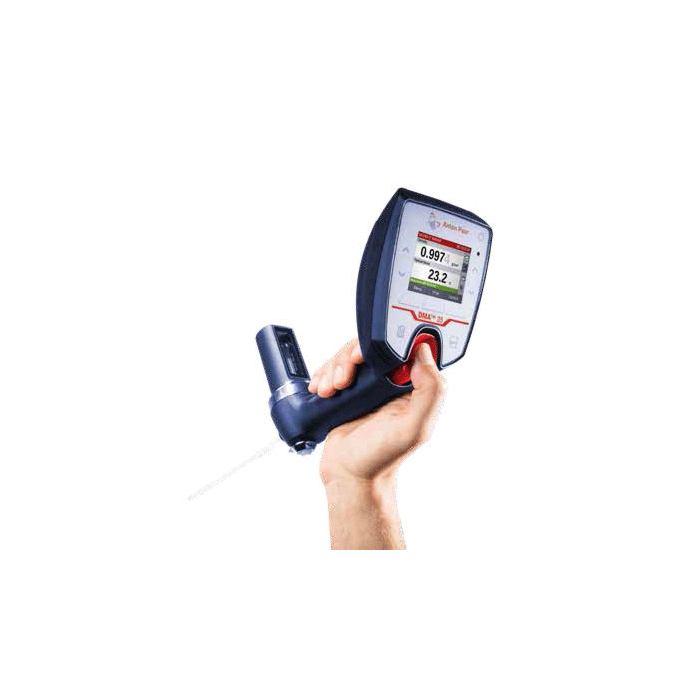

Anton Paar DMA35
Portable Density Meter

Order #: DMA35

Mfg #: 172244

Questions about availability or need help? Contact Us:

(800) 633-0561

Anton Paar DMA35

Portable Density Meter

Order #: DMA35

Mfg #: 172244

Availability: Call for availability

Product Highlights

  • Fill All Kinds of Samples – No Matter what the Viscosity is – in One Second Using the Built-In Pump ora Syringe
  • No Expensive Electrical Wearing Parts: You can Easily Do all Cleaning and Maintenance Work Yourself
  • Intuitive User Interface Without the Need for any Explanation
  • Operated Via Capacitive Keys with a Sensitivity Suitable for Use with or Without Gloves
  • For Sample Temperatures of up to 100 °C, Supporting Quick Decisions, e.g. in the Beer Brewing Process (Measurement on Hot Wort)
  • Smart Patented Oscillator Connection (AT516421 B1) Enables Replacement In Case of Cell Rupture
  • The Most Reliable Portable Density Meter for Fermenting Samples (E.G. Beer and Wine Production) You can Get, Due to Intelligent Oscillator Placement
  • The Oscillator is Placed in the Optimal Angle to Avoid the Influence of Potential Gas Bubbles on the Result (Bubbles Automatically Move Outside the Measuring Cell)
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Patents granted Smart connection of measuring cell: Patent AT516421 (B1), EP3015847 (B1)
Other special functions Viscosity correction for reliable measurements, also on highly viscous samples
Gesture control for easy one-handed measurements
Identification of results outside your specified limits
Measuring range Density: 0 g/cm³ to 3 g/cm³
Temperature: 0 °C to 40 °C (32 °F to 104 °F)*
Sample temperature range 0 °C to 100 °C (32 °F to 212 °F)
Accuracy Density: 0.001 g/cm³ **
Temperature: 0.2 °C (0.4 °F)
Repeatability, s.d.*** Density: 0.0005 g/cm³
Temperature: 0.1 °C (0.2 °F)
Reproducibility, s.d.*** Density: 0.0007 g/cm³
Resolution Density: 0.0001 g/cm³
Temperature: 0.1 °C (0.1 °F)
Ambient temperature**** -10 °C to +50 °C (14 °F to 122 °F)
Supported measuring units
  • Specific gravity
  • Alcohol tables
  • Sugar/extract tables
  • API functions
  • H2SO4 tables
  • Ten programmable custom-specific measuring units
Sample volume 2 mL
Dimensions (L x W x H) 245 mm x 103 mm x 126 mm
Data memory 1024 measured results, 30 measuring methods, 250 sample IDs
Power supply Three 1.5 V LR06 AA alkaline batteries
Weight 660 g
Interfaces Bluetooth®, RFID (both included by default)
Protection class IP54
(first digit: 5 – protection against dust ingress; second digit: 4 – protection against splash water from any direction)
Scope of supply Portable density meter, filling tube, adapter for syringe filling, syringes, transportation suitcase, rubber protection for measuring cell, three batteries, Allen key, instructions
Available options

Elongated filling tube
Portable thermal printer with Bluetooth® interface
Bluetooth® USB adapter
Carrying strap
ISO calibration

* Measurements up to 100 °C possible
** Viscosity <300 mPa•s, density <2 g/cm³
*** according to ISO 5725
**** Sample must not freeze within the measuring cell
