Amprobe UAT-505

Product Highlights

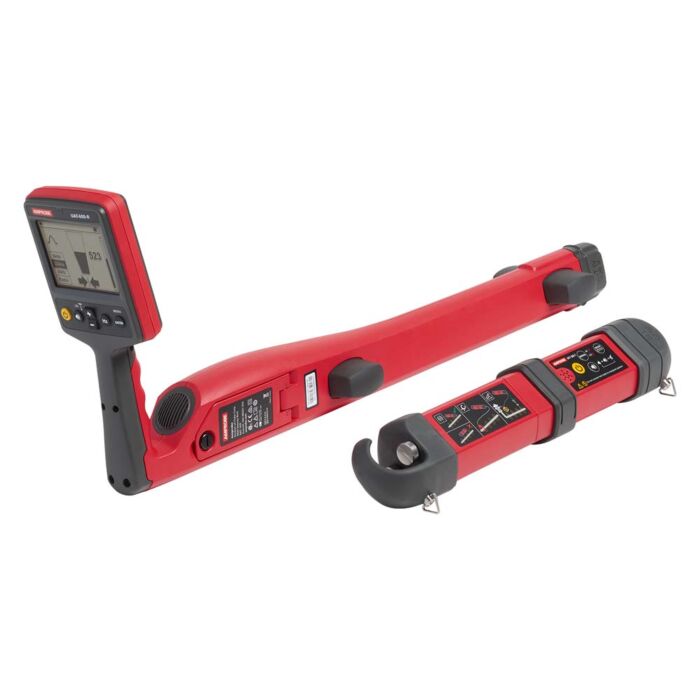

The Amprobe UAT-505 Underground Utility Locator Kit is the rugged solution for locating underground energized and de-energized wires, cables and pipes. It features fast sound and meter response and depth measurements to 20 feet.

Locates underground energized and de-energized wires and cables as well as metal pipes

Multiple tracing modes for locating and tracing energized and de-energized utilities in a variety of applications

Depth measurement up to 20 ft, detect and trace utilities buried up to 100 ft deep

Key Attribute

• Display:
  • Receiver features a high-contrast display with an automatic backlight and semi-automatic gain control for fast signal location and control
• Special Features
  • 4.3 in (109 mm), 320 x 240 BW outdoor LC-Display with auto backlight
  • Receiver Tracing Modes: Active tracing: 33 kHz and 8 kHz; Passive tracing: 50/60 Hz and Radio
• Accessories Included
  • Transmitter De-energized Tracing Modes:
    • Induction Mode
    • Direct Connection Mode
    • Clamp Mode

Key Uses for this Product

• Locate and trace underground utilties, such as sewer, gas, power and water lines
• Locate and trace non-metallic pipes with conductive tracing tape
• Find the depth of utilties up to 20 feet; detect utilities up to 100 feet deep
• Quickly verify if there are buried, energized lines in a location

Each Kit Includes

• 1: UAT-600-R Reciever
• 1: UAT-500-T Transmitter
• 1: CC-UAT-500 Carrying Case
• 1: TL-UAT-500 Test Lead Kit
  • Green test lead with detachable green alligator clip
  • Gray test lead with permanently attached gray alligator clip
  • Ground stake
• 6: 1.5 V AA (IEC LR6) Batteries (Reciever)
• 4: 1.4 V D (IEC LR20) Batteries (Transmitter)
• User Manual
