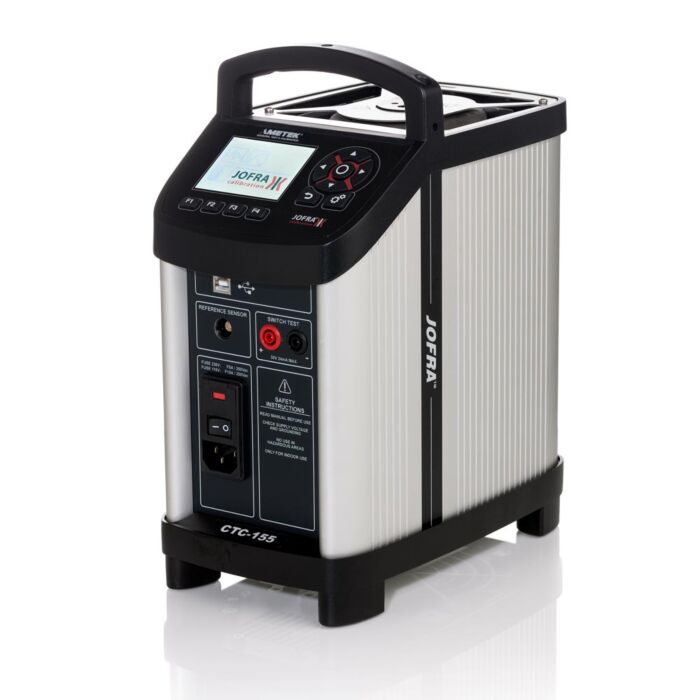

Ametek-Jofra CTC155 Compact Temperature Calibrator, -25C to 155C

Order # CTC155

$6,292.00

Call for availability

Currently a configured instrument on this page is sold at list price. Add to quote to receive your Transcat customer pricing.

The Ametek Jofra CTC Series is a fast, time-saving, reliable dry block temperature calibrator designed for on-site use. The large color display is easy-to-read and provides icons and information regarding the status of the calibrator and the calibration in process. Popular functions like automatic switch test and auto stepping are available with special one-key-one-function buttons. Speed, portability, cleanliness, and wide temperature range are all superior over liquid bath systems. With the use of the optional external reference probe, this is the most accurate industrial class temperature calibrator on the market. CTC Series is available in three versions. The CTC-155 covers a temperature range of -25° to 155°C (-13° to 311°F).

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The large color display on the CTC is easy-to-read and provides icons and information regarding the status of the calibrator and the calibration in process. Popular functions like automatic switch test and auto stepping are available with special one-key-one-function buttons.

Speed, portability, cleanliness, and wide temperature range are all superior over liquid bath systems.

Features

Dry Block Calibrator
Accuracy to ± 0.2°C and Stability to ± 0.04°C
Lightweight and easy to carry
MVI circuitry ensures stability despite mains supply variations
-25°C to 155°C
Metric Insert 5mm
NIST Certificate

Technical Resources

Ametek-Jofra CTC-155, CTC350 & CTC660 Datasheet
Ametek-Jofra CTC-155, CTC350 & CTC660 User Manual
Ametek JOFRA Temperature Calibrator Overview
Ametek JOFRA Testing Thermal Efficiency in Boilers Application Note

Specifications

Temperature Specifications
Temperature Range
Temp. @ ambient 23°C / 73° F	-25 to 155°C / -13 to 311°F
Temp. @ ambient of 0°C / 32° F	-39 to 155°C / -38 ti 311°F
Temp. @ ambient of 50°C / 104° F	-7 to 155°C / -19 to 311°F
Accuracy
CTC-155 with internal ref. sensor	±0.3°C /±0.54°F
CTC-155 with STS-102	±0.2°C /±0.36°F
CTC-155 with STS-120	±0.2°C /±0.36°F
Stability	±0.04°C / ±0.07°F
Radial Homogeneity (difference between holes)	0.03°C / 0.054°F
Settings
Resolution	1 or 0.1 or 0.01
Units	°C or °F or K
Heating Time
23 to 155°C / 73 to 311°F	13 minutes
Cooling Time
155 to 23°C / 311 to 73°F	12 minutes
23 to -25°C / 73 to -13°F	16 minutes
Time to Stability (typical)	10 minutes
Mains Power Specifications
Voltage	115 V (90-127) / 230 V (180-254)
Max Power Consumption	100 VA
Frequency, US deliveries	60 Hz ±3
Frequency, non US deliveries	50 Hz ±3, 60 Hz ±3
Physical Specifications
Dimensions LxWxH	248x148x305 mm / 9.761x5.83x12.01 in
Weight	5.5 kg / 12.1 lb
Immersion Depth incl. insulation plug	120 mm / 4.53 in
Well diameter	26 mm / 1.02 in
Insert Dimensions (diameter x length)	25,8 mm x 100 mm / 1.01 x 3.9 in
Electrical Specifications
Switch Input (dry contact)
Test Voltage	Maximum 14 VDC
Test Current	Maximum 1 mA
Digital Interface	USB 2.0
Environmental Specifications
Operating Temperature	0 to 50°C / 32 to 122°F
Storage Temperature	-20 to 50°C / -4 to 122°F
Humidity	5 to 90% Rh, non-condensing
Protection Class	IP-10
External reference sensor
STS-120-A-915	-25 to 155°C /-13 to 311°F
Accuracy
Hysteresis (@ 0°C / 32°F)	0.01°C / 0.018°F
Long Term Stability (@ 0°C / 32°F)	0.014°C / 0.025°F
Repeatability	0.004°C/ 0.007°F
Sensing Element	Type PT100
Response Time
STS-120-A: t0.5 (50%)	7 sec.
STS-120-A: t0.9 (90%)	18 sec.
Dimensions
Diameter	4 mm / 0.157 in
Length	140 mm / 5.51 in
Max. height over calibrator top	20 mm / 0.79 in
External reference sensor
STS-102-A	-50 to 155°C /-58 to 311°F
Accuracy
Hysteresis (@ 0°C / 32°F)	0.01°C / 0.018°F
Long Term Stability (@ 0°C / 32°F)	0.014°C / 0.025°F
Repeatability	0.002°C/ 0.0036°F
Sensing element	Type PT100
Response Time
STS-120-A: t0.5 (50%)	5 sec.
STS-120-A: t0.9 (90%)	16 sec.
Dimensions
Diameter	4 mm / 0.157 in
Length	30 mm / 1.181 in
Cable Length	1 m / 3.28 ft
