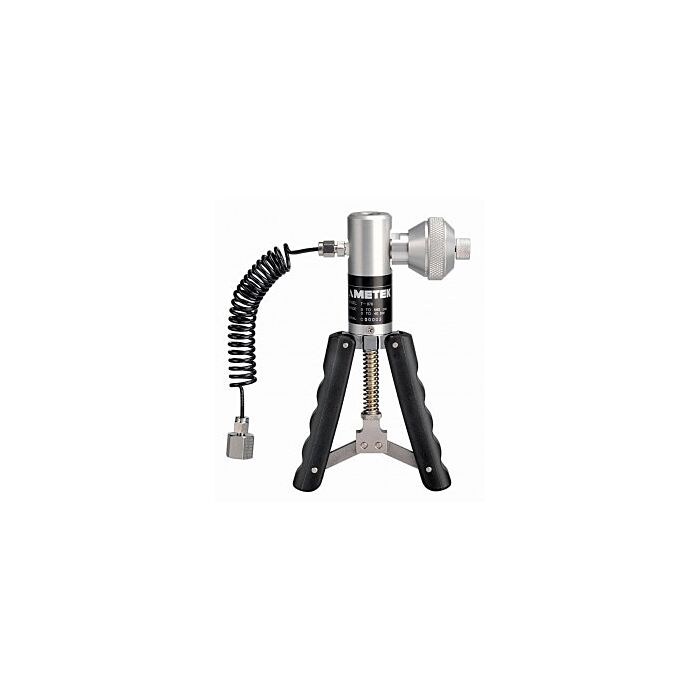

Ametek - M&G T-965
Pneumatic Handpump,25"Hg-30PSI
Order #: T-965
Mfg #: T-965
$1,008.00
$1,008.00
Availability: Ships in 3-4 weeks
Product Highlights
The vent valve design has been upgraded on the T-900 Series and the Vernier function now operates differently from the previous generation. The new vent design has a reverse thread to allow for proper Vernier operation and also for operation of the vent which is now an o-ring seal and not a metal seat seal. If the valves are not properly used, one will be opened when the other is tightened and the pressure will be relieved.
- Pneumatic pressure pump features both vacuum and pressure generation
- A button (valve) makes it easy to switch from vacuum to pressure measurements
- Built-in release valve, vernier valve for fine adjustment and dual pressure output enable safe and simple operation
- The unit offers both metric and imperial threads on the reference connection and the hose
Each Unit Includes - Pump
- Pressure Port Adapters:
- 3/8" BSP Male to 1/4" BSP Female
- 3/8" BSP Male to 1/4" NPT Female
- Device Under Test Pressure Port Adapters:
- 1/4" NPT Male to 1/4" BSP Female
- 0.61 meter Coiled Hose with 1/4" NPT Female Connection
- 3/8" BSP Male to 1/4" BSP Female
- 3/8" BSP Male to 1/4" NPT Female
- 1/4" NPT Male to 1/4" BSP Female
- 0.61 meter Coiled Hose with 1/4" NPT Female Connection
