AEMC 566
Clamp-on Leakage Current Meter

Order #: 566-AEMC

Mfg #: 2139.83

Questions about availability or need help? Contact Us:

(800) 633-0561
$375.00

AEMC 566

Clamp-on Leakage Current Meter

Order #: 566-AEMC

Mfg #: 2139.83

$375.00
Availability: Ships in 1-2 weeks
Available Promotions

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

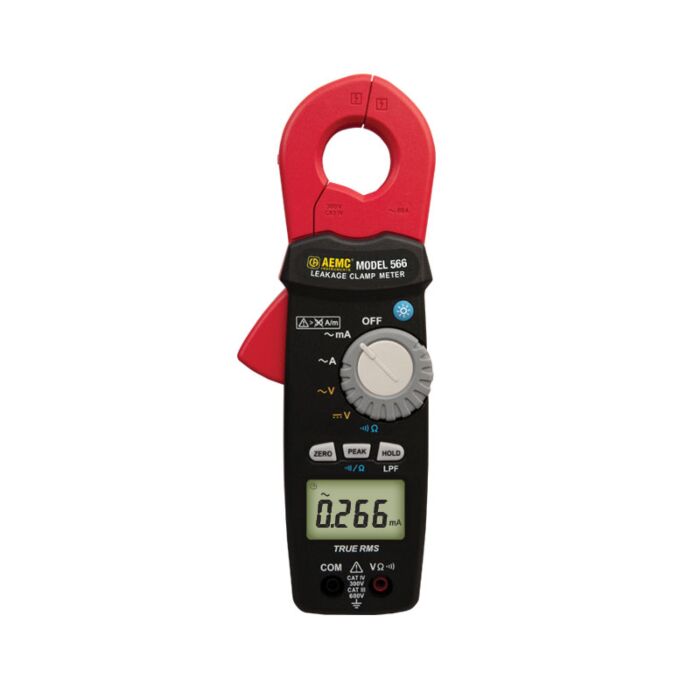

Clamp-on Leakage Current Meter Model 566

The TRMS Clamp-On Leakage Current Meter Model 566 is designed to measure low AC currents, which are typically leakage currents in ground conductors. Low currents are measured in the 60mA and 600mA ranges. The high sensitivity of the probe (1µA, 10µA and 100µA) resolution when measuring mA is possible through special jaw construction and, in particular, critical shielding of the jaws. At low measurement levels, shielding out noise is critical for low sensitivity, accuracy, and stability.

The Model 566 can be used as a standard clamp-on meter measuring to 60Arms, as well as VAC and VDC ranges, resistance and continuity with a buzzer. In mAAC and AAC, the user can activate a low-pass filter (LPF) to ignore all currents other than 50/60Hz. In this mode, only the fundamental signal is measured.

The Model 566 is ergonomic in design and fits well in the hand, facilitating one hand operation. The jaw size is compact yet designed to accommodate the most common conductors up to 0.91" (23mm) in diameter.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Voltage Range: 600Vrms AC/DC Auto-Ranging
Resolution Max: 0.01V
Current Range (mA): 6 / 60 / 600mArms AC
Current Range (A): 6.0 / 60Arms AC
Resolution Max: 1 µA
Accuracy V Typical: 1.0% ± 3cts
Accuracy A Typical: 1.0% ± 3cts
Continuity: <45Ω
Resistance: 600kΩ
Frequency Range: 500Hz in V, A
Power Source: 2 x AAA, IEC LR03
Battery Life: 40 hours at ACmA, ACA and ACV functions
60 hours at DCV and Ohm functions
Dimensions: 8.27 x 3 x 1.32" (210 x 76 x 33.5mm)
Weight: 10.4 oz. (296g) with batteries
Jaw Opening: .91" (23mm)
Operating Temperature: +32° to 104°F (0° to +40°C)
Storage Temperature: +14° to 140°F (-10° to +60°C)
Operating Humidity: 80% up to 104°F (40°C)
