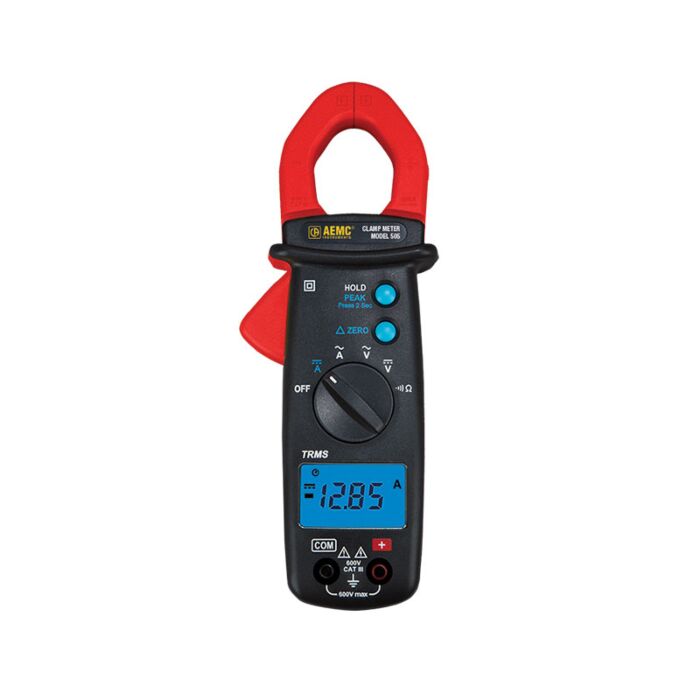

AEMC 505

Clamp-on Meter (TRMS, AC/DC, 400AAC/DC, 600VAC/DC, Ohms)

Order #: 505-AEMC

Mfg #: 505

Questions about availability or need help? Contact Us:

(800) 633-0561
$189.00

AEMC 505

Clamp-on Meter (TRMS, AC/DC, 400AAC/DC, 600VAC/DC, Ohms)

Order #: 505-AEMC

Mfg #: 505

$189.00
Availability: Ships in 1-2 weeks
Available Promotions

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Clamp-on Meter Model 505

The Clamp-on Meter Model 505 is a general-purpose professional instrument. A strong mechanical case design, quality materials, full ranges and compliance to international safety and quality standards ensure a professional and reliable tool. The Model 505 is auto-ranging, and measures AC and DC voltage, AC and DC current, resistance, and continuity.

The large and complete 4000-count LCD features comprehensive user interface symbols such as a low battery indicator. It is equipped with a Data Hold function, which freezes the measurement. The Model 505 is compact for comfortable one-handed operation, and the hooked jaw design is easy to maneuver in crowded wiring and breaker panels. The jaw opening is 1.1" (28mm).

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

ELECTRICAL
AC Current (Auto-Ranging) 0.05 to 400A
Resolution 0.01A and 0.1A
AC Voltage(Auto-Ranging) 0.5 to 600V
Resolution 0.1V and 1V
Input Impedance 10MΩ
DC Current (Auto-Ranging) 0.10 to 400A
Resolution 0.01A and 0.1A
DC Voltage(Auto-Ranging) 0.2 to 600V
Resolution 0.1V and 1V
Input Impedance 10MΩ
Resistance 0.2 to 600Ω
Max Test Voltage 1.5VDC
Continuity <35Ω
Max Test Voltage 1.5VDC
Zero Mode / Delta Function Yes
Peak Function Yes
MECHANICAL
Dimensions 7.83 x 2.95 x 1.42" (199 x 75 x 36mm)
Weight 8.57 oz. (243g) with batteries
Jaw Opening 1.18" (30mm)
Power Source 2 x AAA, IEC LR3 (included)
Battery Life 40 hours
ENVIRONMENTAL
Operating Temperature +32° to 104°F (0° to +40°C)
Storage Temperature +14° to 140°F (-10° to +60°C)
Operating Humidity <70%
Pollution Degeree 2
SAFETY
Safety Ratings EN/IEC 61010 to 600V CAT III
