AEMC 205
Power Clamp-on Meter,1000VAC/DC (TRMS,Ohms,Continuity,THD,Powe

Order #: 2139.40

Mfg #: 2139.40

Questions about availability or need help? Contact Us:

(800) 633-0561
$375.00

AEMC 205

Power Clamp-on Meter,1000VAC/DC (TRMS,Ohms,Continuity,THD,Powe

Order #: 2139.40

Mfg #: 2139.40

$375.00
Availability: Ships in 1-2 weeks
Available Promotions

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

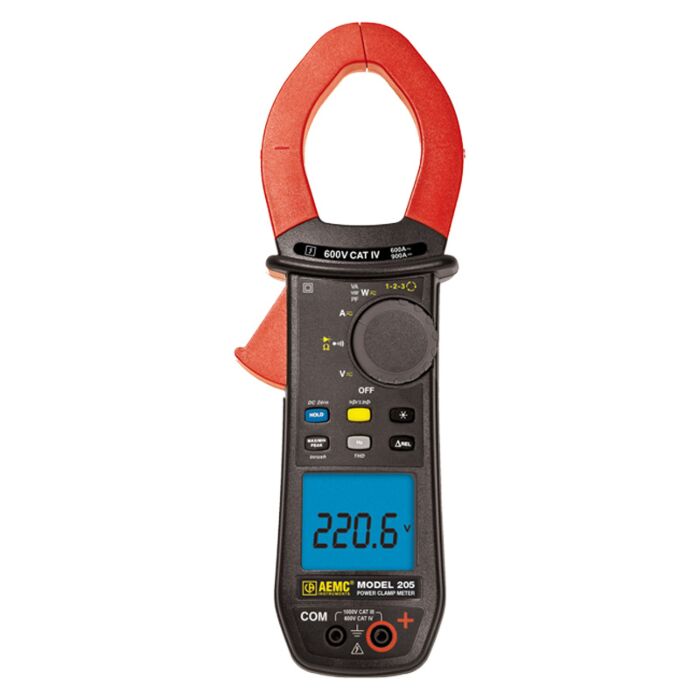

Clamp-on Meter Model 205

The True RMS Clamp-On Meter Model 205 is safety rated at 600V CAT IV. It measures AC+DC volts and amps, frequency, continuity, resistance, power and Power Factor, phase rotation, and THD. It can also perform diode checks. The Delta relative function compares new measurements to a reference value, and the MIN/MAX function tracks high and low values. The Model 205 also tracks peak+ and peak- values. This compact and rugged meter can operate in demanding work environments.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Voltage Range: 1000Vrms AC/DC/AC+DC Auto-ranging
Resolution Max: 0.01V
Current Range: 600Arms AC, 900ADC
Resolution Max: 0.01A
Accuracy V Typical: 1% ± 3cts
Accuracy A Typical: 1% ± 3cts
InRush: 6 to 600AAC, 6 to 900ADC
Power Measurement Max: 600kW AC, 900kW DC
THD: Yes, %f and %r
Continuity: Selectable from 0 to 599.9Ω
Resistance: 60kΩ
Diode Test: 0 to 3.2VDC
Frequency: 20kHz in V, 3kHz in A
Power Factor: Yes
Phase Order: Yes
MIN/MAX/PEAK-/PEAK+ Yes
ΔREL: Yes
Power Source: 1 x 9V, IEC LF22
Battery Life: >120 hours
Dimensions: 8.7 x 3.0 x 1.65" (222 x 78 x 42mm)
Weight: 12.0 oz. (340g) with battery
Jaw Opening: 1.34" (34mm)
Operating Temperature: -4° to +131°F (-20 to +55°C)
Storage Temperature: -40° to +158°F (-40 to +70°C)
Operating Humidity: 90% up to 131°F (55°C)
Pollution Degree: 2
Ingress Protection: IP40
EMC: EN61326-1
Safety Compliance: EN/IEC 61010-1: 1000V CAT III, 600V CAT IV
EN/IEC 61010-2-030:2010
EN/IEC 61010-032:2002
