AccuMac AM1210
Type S Reference Standard Thermocouple w/300mm Probe
Order #: AM1210
Mfg #: AM1210-12
Special Price
$4,731.00
Regular Price
$4,980.00
AccuMac AM1210
Type S Reference Standard Thermocouple w/300mm Probe
Order #: AM1210
Mfg #: AM1210-12
Special Price
$4,731.00
Regular Price
$4,980.00

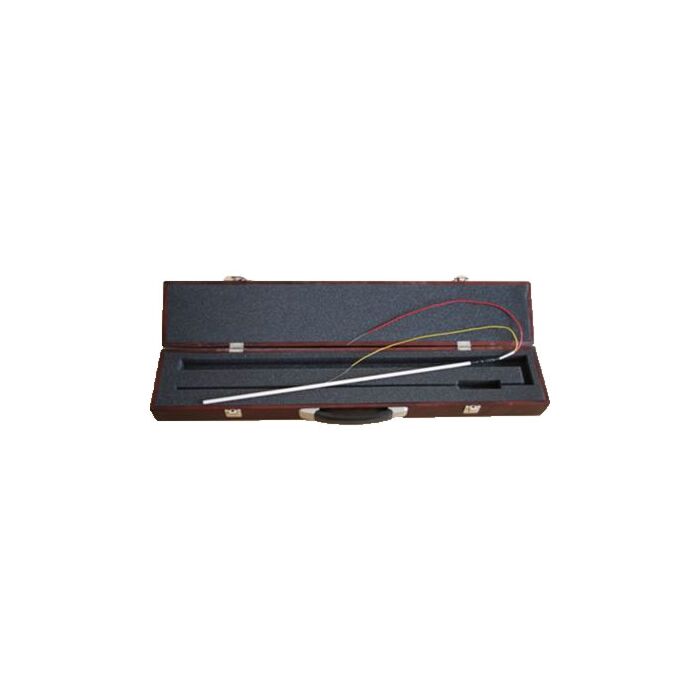

AM1210 Reference Standard Type S Thermocouple is made from reference grade platinum and platinum-rhodium alloy. It covers a temperature range of 0 °C to 1300 °C with short term stability of 0.2 °C all the way to Freezing Point of Copper (1084.62 °C). It is commonly used as reference standard to calibrate industrial thermocouples. All thermocouple wires and parts are specially cleaned and annealed before assembly
Availability: Ships in 3-4 weeks
Product Highlights
- Affordable reference standard
- Type S
- Short term stability at: +/- 0.2 °C at 1084.62°C
- Temperature range: 0 °C to 1300 °C
Each Unit Includes
- Carrying Case
Temperature Range |
0°C to 1300°C |
Type |
Type S: Platinum/10 % Rhodium vs. platinum |
Long Term Drift |
±0.6°C at 1084.62 °C after 1 year typical usage |
Tolerance (mV) |
E(tCu)=10.575±0.015 E(tAl)=5.860+0.37(E(tCu)-10.575)±0.005 E(tZn)=3.447+0.18(E(tCu)-10.575) ±0.005 |
Short Term Stability |
±0.2°C at 1084.62 °C |
Diameter of thermocouple wire |
0.5 mm |
Sheath Material |
Quartz or Alumina |
Sheath Dimensions |
OD: 6 mm; Length: 500 mm |
External Lead Wire |
S type thermocouple wire, 500 mm |
Protective Carrying Case |
Included |
