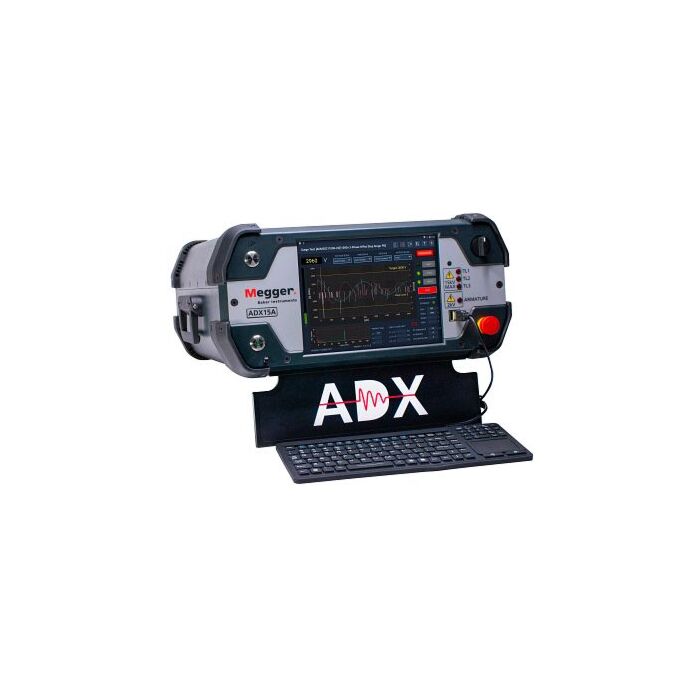

Megger ADX-15-RLC-PD FOR RENT
Automated Diagnostic Static Motor Tester with RLC & PD,15kV

Order #: ADX-15-RLC-PD-RENT1

Mfg #: ADX-15-RLC-PD-RENT1

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Megger ADX-15-RLC-PD FOR RENT

Automated Diagnostic Static Motor Tester with RLC & PD,15kV

Order #: ADX-15-RLC-PD-RENT1

Mfg #: ADX-15-RLC-PD-RENT1

Call for price
Call for price

Rent from the Instrument experts at TranscatRent from the Instrument experts at Transcat
Availability: Call for Availability
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Questions about this product? Speak to an expert

Product Highlights

The ADX family includes models designed to perform tests up to 15 kV.

The five main options include 4 kV, 6 kV, 12 kV, 15 kV, and 15 kV-A (Armature). These analyzers can be coupled with PPX to increase test voltages to 30 kV or 40 kV for tests on high voltage motors, coils, and generators.

The Megger Baker ADX is used for motor winding, coil, assembled motor, and generator testing. It will be used by Original Equipment Manufacturers, Industrial Maintenance Engineers, Motor Repair Shops, and Service Engineers working on equipment in the field for verification, validation, fault finding, and research; or to serve as part of a maintenance program.

KEY FEATURES

  • Detachable IEC61010-compliant HV / LV Kelvin test leads
  • PowerDB Dashboard secure cloud-based analysis software
  • 10.4-inch daylight viewable touch screen
  • Industrial IP68 Waterproof Silicone Keyboard
  • Choice of Manual, Automatic, or Sequence testing
  • Screen-level context sensitive help
  • Adaptable search capability
  • Asset management tools
  • Configurable Route based testing
  • Pulse-to-Pulse and Line-to-Line Error Area Ratio analysis
  • Import existing databases from AWA and DX
  • Android operating system
  • 2 x USB ports and ethernet connection
  • HDMI port for duplicating screens
  • Wi-Fi and Bluetooth enabled
  • Foldable viewing stand

BENEFITS

  • Asset-centric approach provides opportunities for turnkey testing.
  • Sequence mode leverages the approach for fully-automatic testing.
  • Data analysis features identify service needs and reduce down time
  • Remote asset configuration via PowerDB Dashboard frees the ADX for testing needs.
  • Separating Asset from Installation opens opportunities for data analysis

TESTS PERFORMED

  • Winding Resistance
  • Inductance
  • Capacitance
  • Insulation Resistance
  • Dielectric Absorption (DA)
  • Polarization Index (PI)
  • DC HiPot
  • DC Step-Voltage
  • DC Continuous Ramped
  • Surge analysis with EAR+™
  • Partial Discharge on Surge

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Specifications

ADX

Automated Static Motor Analyzer


Feature Parameter

Max. Generated Voltage

(Peak Voltage for AC or DC Test)

ADX4: Nominal 100 V-4 kV

ADX6: Nominal 100 V-6 kV

ADX12: Nominal 100 V-12 kV

ADX15: Nominal 100 V-15 kV

ADX15A: Nominal 100 V-15 kV

Internal Memory RAM 2GB DDR3
Internal Storage 8GB MMC and 480GB SSD Drive
Processor Speed 1.0 Ghz (Quad core)
User Interface Capacitive touch screen, mouse, keyboard, stylus
Platform Android
Display 10.4-in touch screen
Resolution XGA 1024 x 768
Bluetooth 4.1 / BLE with CSA2 support
Wi-Fi 802.11 a/b/g/n Dual Band 2.4 / 5 GHz
Ethernet Gigabit Ethernet 10/100/1000 Mbps
USB Flash Drive USB 2.0
Battery Backup 4+ hours standby time
Weight

ADX15: 46.3 lbs. (21 kg)

ADX15A: 50.7 lbs. lbs. (23 kg)

Dimensions

18 x 23 x 8.5 in

(457 x 584 x 216 mm)
