BK Precision 8616
Programmable Electronic DC Load 1200W,500V,60A

Order #: 8616-BK

Mfg #: 8616

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,990.00

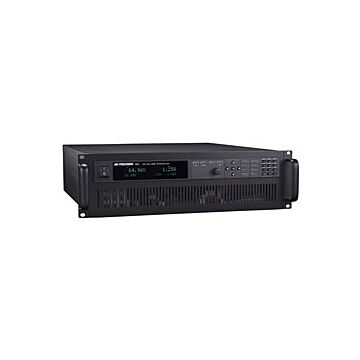

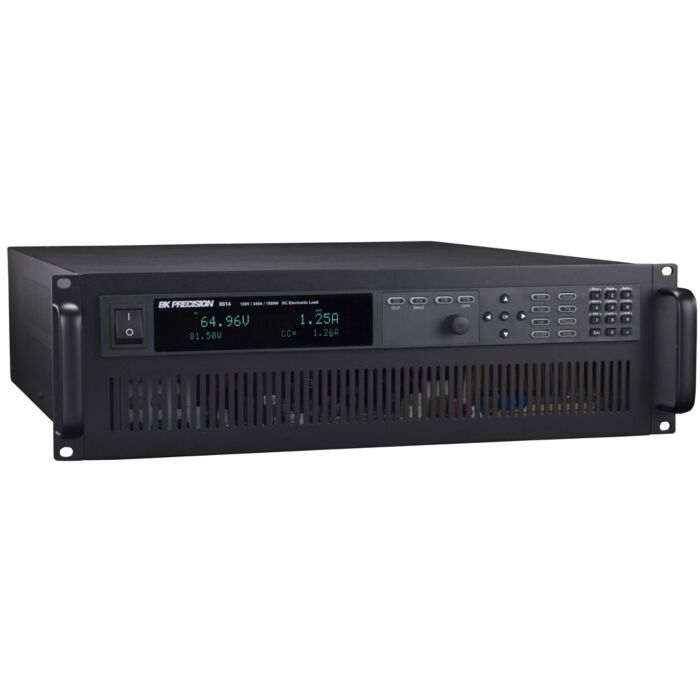

BK Precision 8616

Programmable Electronic DC Load 1200W,500V,60A

Order #: 8616-BK

Mfg #: 8616

$5,990.00
Availability: Call for availability
Loading...

Choose Your Options:

Tariff fees or manufacture imposed surcharges may be applicable.

Product Highlights

  • CC/CV/CR/CW operating modes
  • 16-bit voltage and current measurement system providing 1 mV / 0.1 mA resolution
  • Transient mode up to 25 kHz in CC mode
  • List mode function
  • Store and recall up to 100 setups
  • Adjustable slew rate in CC mode
  • Flexible triggering options via front panel, external input, timer, or bus
  • Built-in battery test function with voltage level, capacity level, and timer stop conditions
  • Test modes to validate the OCP/OPP protection functions of a power supply
  • CR-LED mode to simulate the loading behavior of typical LEDs
  • Remote sense
  • Analog current control and monitoring
  • Thermostatically controlled fan
  • Standard USB (USBTMC-compliant), RS232, and GPIB interfaces supporting SCPI commands for remote control
  • OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection

Each Unit Includes

  • User manual
  • Power cord
  • Certificate of calibration
  • Test report
