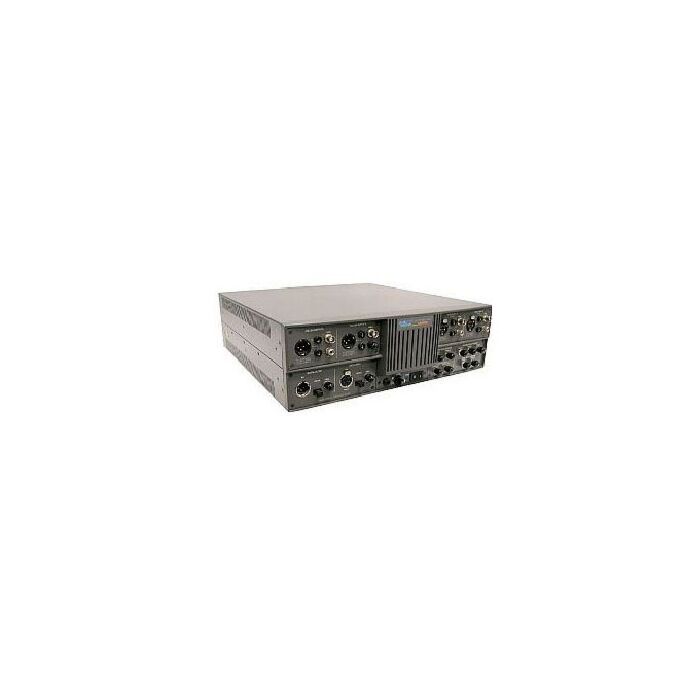

Used Audio Precision SYS-2322 System Two Duel Domain Audio Analyzer, 500kHz

Product Highlights

The SYS-2322 is a 500 kHz Audio Analyzer from Audio Precision. With an audio spectrum analyzer, measure frequency response, level and gain, phase intermodulation distortion, signal-to-noise ratio, crosstalk, time domain display, and total harmonic distortion plus noise.

• Form Factor: Benchtop
• Integral Signal Source: Yes
• No. of Outputs: 2 o/p
• Waveforms (Sine, Square, etc.): Phase,Sine
• Source Minimum Frequency: 10 Hz
• Source Maximum Frequency: 500 kHz
• Sweep Modes: No
• Source Frequency Resolution: 3 kHz
• Source Frequency Accuracy: 6 %
• Output Accuracy: 0.0002 %
• Output Impedance: 110 Ω
• No. of Receiver Channels: 2 ch
• Input Impedance: 100 Ω
• Maximum Input Voltage: 230 V(DC+p
• Signal-to-noise ratio & distortion ratio: No
• Phase Angle: 360 degree
• Crosstalk: -140 dB

Measurements/Features

• PC Based
• AES/EBU Testing capability
• Level Meter
• Frequency meter
• Phase measurements
• Wideband Amplitude/noise function

Programmability/Connectivity

• User Interface: Windows/95
• Ports to Peripheral Devices: APWIN,APIB
• Audio Precision/DCX-127
• Multi-Function Module
• Module (proprietary interface/bus)
• CE Compliance Compliant

Power Requirements

• Input Power: Universal (Auto Sense and Switch)
• Width 425 mm(16.73 in); Height 133 mm(5.23 in); Length 457 mm(17.99 in)

The Audio Precision SYS-2322 contains an analog signal generator consisting of an ultra-low distortion analog sinewave generator and two independent transformer coupled output stages that can be driven from both the analog sources and optional hardware signal generators. Option BUR adds analog generated sine burst, square wave, and noise signals.
