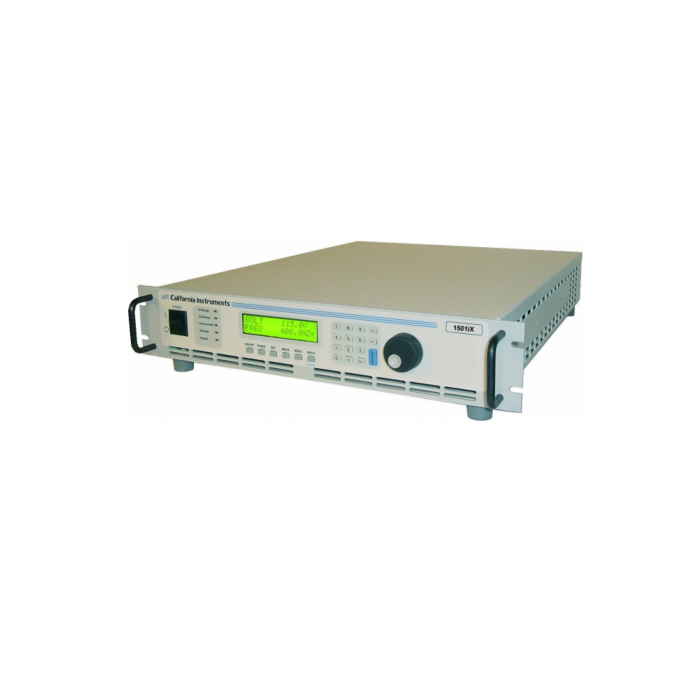

Rent the Ametek California Instruments 1501IX 1500VA Single Phase AC/DC Power Source

Ametek 1501IX Highlights

The CI-1501IX Compact iX Series represents a new generation AC and DC power source that addresses increasing demands on test equipment to perform additional functions at a lower cost. By combining a flexible AC/DC power source with a high performance power analyzer, the Compact iX Series is capable of handling complex applications that have traditionally required multiple systems.

• AC Output
• Voltage High Range: 0 - 300Vrms
• Voltage Low Range: 0 - 150Vrms
• Max. Current:
• High Range: 6.5Arms
• Low Range: 13Arms
Peak Current:
• High Range: 40 A Peak
• Low Range: 20 A Peak
• AC Power: 1500VA
• Distortion: < 1% THD
• DC Output
• Voltage High Range: 0 - 400Vdc
• Voltage Low Range: 0 - 200Vdc
• Max. Current:
• High Range: 3.33Adc @ 300V
• Low Range: 1.67Adc @ 150V
• High Range: 1000W
• Low Range: 250W
• Frequency Range: 16 - 1000Hz
• Resolution: 0.01 Hz (16 - 81.91 Hz)
• 0.1 Hz (- 82.0 - 819.1 Hz)
• 1 Hz (820- 1000 Hz)
• Accuracy: 0.025%
• Measurements
• Voltage Accuracy: 0.1% FS
• Current Accuracy: 0.5% FS
• Input Line Voltage: 115Vrms or 230Vrms +/-10% switch selectable on rear panel
• Input Line Frequency: 50-60 Hz 10 %
• series I. the series II does not have a switch as its power supply is auto-sensing)
