AEMC Instruments SL12

Simple Logger : voltage, 10 VDC

Order #: 2156.12

Mfg #: 2156.12

Questions about availability or need help? Contact Us:

(800) 633-0561
$89.00

AEMC Instruments SL12

Simple Logger : voltage, 10 VDC

Order #: 2156.12

Mfg #: 2156.12

$89.00
Availability: Item ships in about Ships in 1-2 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

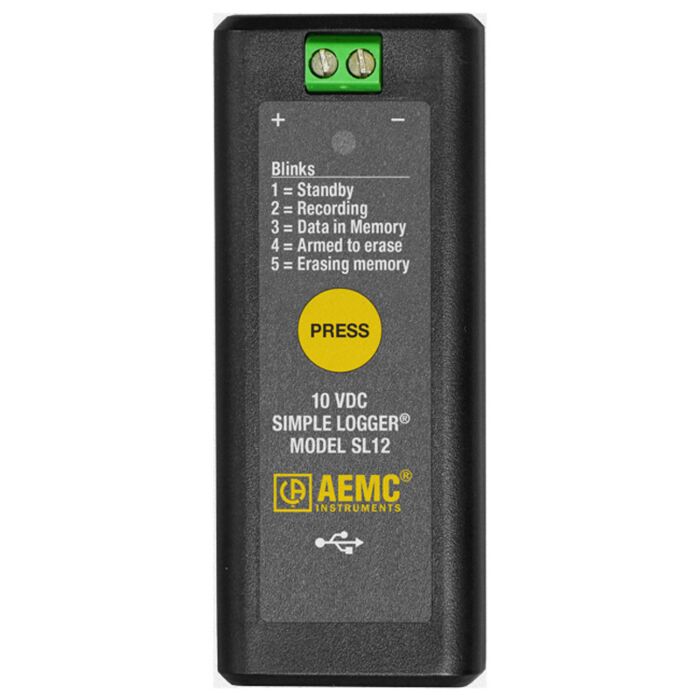

The Simple Logger® Model SL12 is a small one channel recording device powered by two AA alkaline batteries. It can also be powered by 5V using the USB interface cable supplied. The input is 0 - 10VDC facilitated by two screw terminals. Sample rate is 16/sec with a storage rate of once per second of the average of all the samples. Application software is included with the unit by plugging it into your computer using the USB cable and downloading it from our web site. Scaling units of measure and recording length can be set through the software. Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed.

The main advantage of the logger is its ability to begin recording with only the need to configure the length of time for the recording. A simple one button operation is all you need. The front panel LED alerts the operator of the logger's status.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Channels One
Input Screw connector
Range -10 to +10VDC
Accuracy (50/60Hz) ±(0.5% R +50mV) with filter set to 10
Resolution 10mV
Maximum Input Voltage 60VDC
Input Impedance 800kΩ
Sample Rate 16 samples/second
Storage Rate 1 second
Storage Modes Start/Stop
Recording Length ≥43 days
Memory 4 million measurements (8Mb). Recorded data is stored in
non-volitile memory and will be retained even if battery is low or removed.
Communication USB 2.0 (Simple Logger software free to download from web site)
Power Source 2x1.5V AA (LR6) alkaline batteries or USB 5VDC
Battery Life 43 days with new batteries when recording
Low Battery Battery voltage display in software (Batteries need replacement when the LED is dim or does not blink)
Dimensions 3.6 x 1.44 x 1.32" (91.44 x 36.58 x 34.8mm)
Weight (with battery) 3.5oz (99g)
Case Polycarbonate
Operating Temperature 14° to 122°F (-10° to 50°C)
Storage Temperature -4° to 140°F (-20° to 60°C)
Relative Humidity Up to 85% @ 95°F (35°C)
Ingress Protection (IP) IP40
EMC EN 61326-1
Safety Compliance IEC 61010-1
