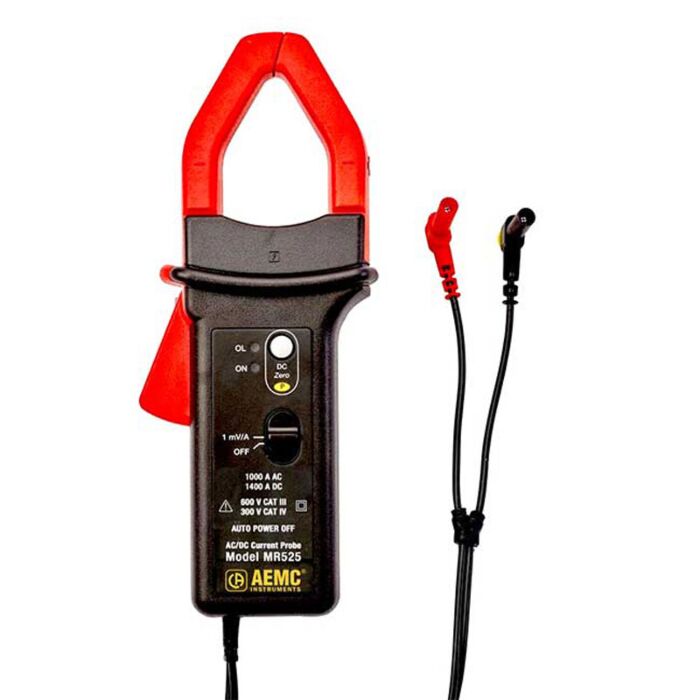

AEMC MR525

AC/DC Current Probe 1000AAC 1mV/A and 1400ADC,1mV/A

Order #: 1200.81

Mfg #: 1200.81

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Special Price $312.55 Regular Price $329.00

Availability: Ships in 1-2 weeks

Ships Free Over $100

Available Promotions

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Overview

Product Highlights

The MR525 is a hall effect current probe with a single range designed for DMM, Data loggers and Power Analyzers. The probe has a 5 ft (1.5m) lead terminated by 4mm safety banana plugs and can measure up to 1000AAC and 1400ADC. The probe is powered by a 9V battery or by a standard 5V external power supply via a micro-USB connector (not supplied).

1000AAC, 1mV/A & 1400ADC, 1mV/A, 4mm Banana Plug Lead

The jaw shape enables users to clamp on to cables or small busbars
Powered by battery or standard external 5V power supply via micro-USB connector
Measures up to 1000Aac and 1400Adc (model dependent)
Automatic Zero DC reset function
Auto Power Off enable/disable function
Millivolt output compatible with most equipment and instruments
Battery life up to 50 hours
Safety rating 600V CATIII

Specifications

Maximum Conductor Size	1.53" (39mm) or 2 bus bar 1.96 x 0.19" (50 x 5mm)
Current Range	0.5 to 1000A_AC, 1400A_DC,
Output Signal	1mV/A via a 5 ft (1.5m) lead with 4 mm safety banana plugs
Accuracy 50/60Hz	≤2.5% @ 800A
Frequency Range	DC to 30kHz (-3dB) (depending of current value)
Phase Shift At 50Hz	≤1.5°@ 800A
Load Impedance	>1MΩ and ≤100pF
Overload	3000A_DC or 1000A_AC continuous for < 1kHz
Zero Adjust	Automatic on both ranges
Power Supply	9V alkaline Battery (NEDA 1060A, 6LR61) or 5V DC Micro-USB type B
Battery Life	50H typical
Low Battery Indication	Green LED blinking
Overload Indication	Red LED on when measurement > than selected range
Dimensions (H x W x D)	9.31 x 3.82 x 1.73" (236.5 x 97 x 44mm)
Weight (with Battery)	1.15lbs (520g)
Operating Temperature	14° to +131°F (-10 to +55°C)
Storage Temperature	-40° to +176°F (-40 to +80°C)
Relative Humidity	Up to 85% @ 35°C
Ingress Protection (Ip)	IP 40
EMC	EN 61326-1
Safety Compliance	IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 600V CAT III
