AEMC Instruments 8510 Digital Transformer Ratiometer, (110/220V)

Order # 2136.50 | Mfg # 2136.50
Save 5%
$3,580.00
$3,401.00
Also Available:
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The DTR® Model 8510 is an easy-to-use portable digital transformer turns ratiometer designed for on-site testing of power, potential and current transformers. When connected to a non-energized transformer, the DTR® Model 8510 accurately measures primary to secondary turns ratio, while simultaneously displaying polarity and excitation current.

The DTR® is fully automatic and uses an ANSI/IEEE compliant test method. No user calibration, range selection, hand cranking or tedious balancing is required. At each measurement, the DTR® automatically self-calibrates and checks for open windings/connections/circuit breakers, short circuits (excess excitation current), incorrect test lead placement, and reverse polarity. Measurements are displayed quickly and accurately.

  • Ratio Testing: PT/VT from 0.8000:1 to 8000:1 and CT from 0.8000 to 1000.0 (Auto-Ranging)
  • Tests performed by exciting the primary and reading the secondary; provides safer conditions for the operator on step-down transformers
  • Continuity test indicates open or loose (high resistance) terminal connections
  • DC test mode eliminates errors due to magnetic build up
  • Stores up to 10 primary/secondary nameplate voltages to use in comparing test results
  • Displays ratio, test current, winding polarity, and deviation from nameplate voltage or ratio
  • Stores up to 10,000 test results
  • DataView® software included which allows configuring the instrument, downloading stored measurements and printing of test results in a report format
  • Display warns of incorrect lead connection, reverse polarity, open and short circuits

Each Unit Includes

  • Includes soft carrying case
  • NiMH batteries (installed)
  • 115V power cord
  • set of (2) 15 ft leads
  • set of (2) alligator clips (red, black)
  • 10 ft USB cable
  • external battery charger (90-264Vac, 50/60Hz)
  • USB drive with DataView® software and a user manual

Technical Resources

AEMC Instruments 8510 Digital Transformer Ratiometer, (110/220V) Accessories

checkbox-empty
Select

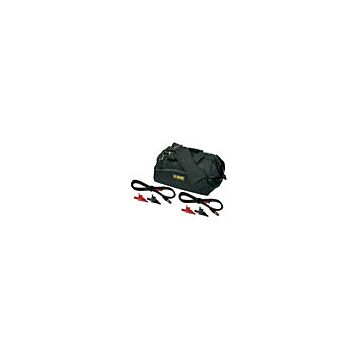

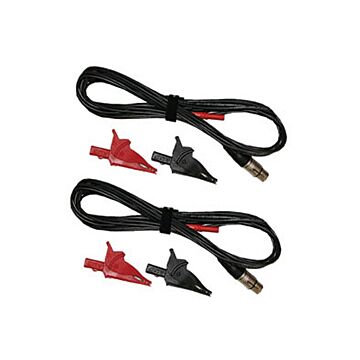

AEMC 2136.76 Set of 2 Leads, 30' (for DTR 8500/8510)
checkbox-empty
Select
AEMC 2136.77 Set of 2 Replacement Leads,15' for DTR Models 8500/8511
checkbox-empty
Select
AEMC Instruments 2133.73 Extra Large Classic Tool Bag (18x9x12")
checkbox-empty
Select
AEMC 2136.79 battery Charger-Replacement,110 to 240V charger for DTR 8511
checkbox-empty
Select
AEMC 5000.14
checkbox-empty
Select
AEMC Instruments 5000.99 Clip - Safety Alligator,Black (Rated 1000V CAT IV, 15A,UL V2)
checkbox-empty
Select
AEMC Instruments 5100.00 Clip - Safety Alligator - Red (Rated 1000V CAT IV, 15A,UL V2)
checkbox-empty
Select
AEMC Instruments 2136.80 10 ft USB Type A to Type B Cable
