Overview
Product Highlights

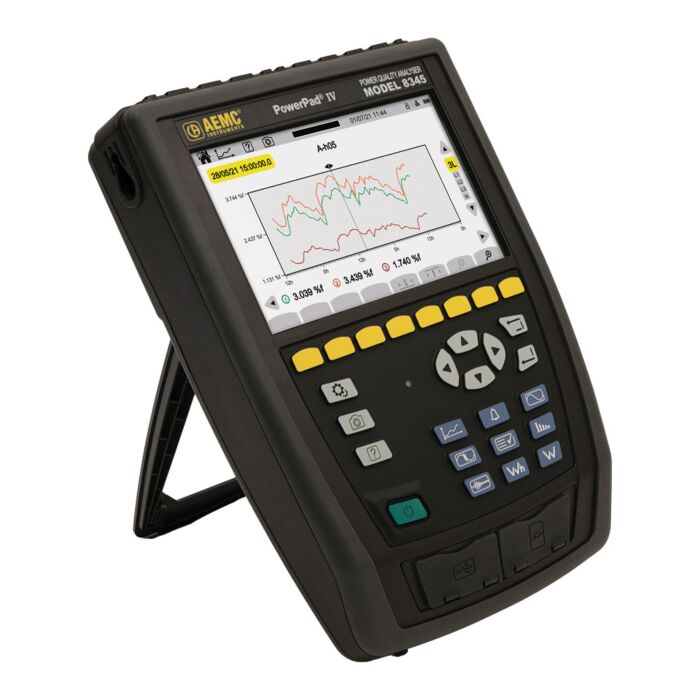

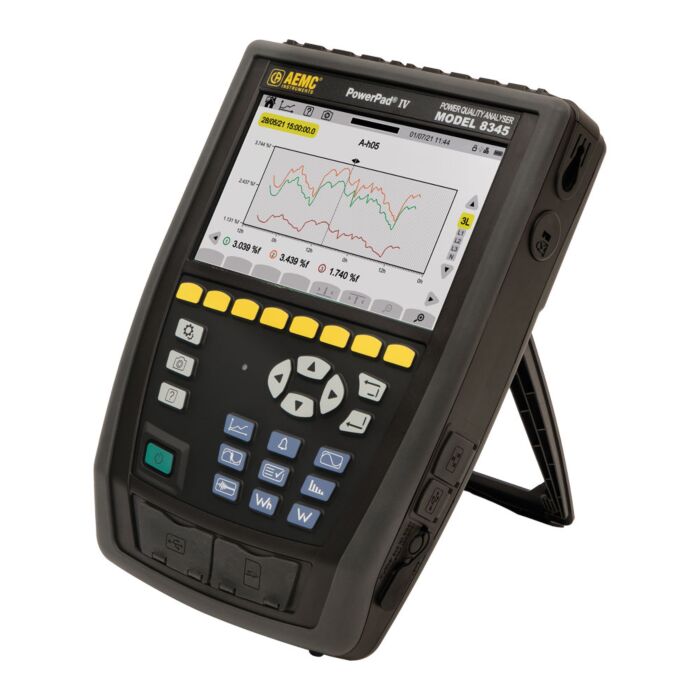

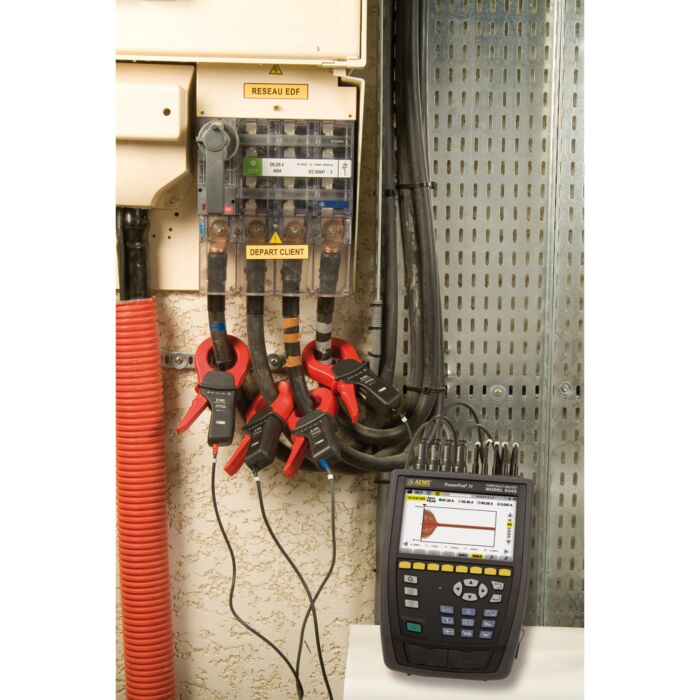

PowerPad IV, with 4 Miniflex 193-24-BK Flexible Current Sensors
New Firmware update:
Harmonics up to order 127 and inter-harmonics up to order 126
Automatic pre-trigger to Inrushes
Virtual keyboard
Setup password
A second Wi-Fi Access Point (WAP) connection mode
Setup password
A new tolerance range function
Improved screen capture storage of measurements (power data is slated for a future release)
Full compliance with IEC 61000-4-30 ed. 3.0 Class A functions
Voltage quality diagnostics

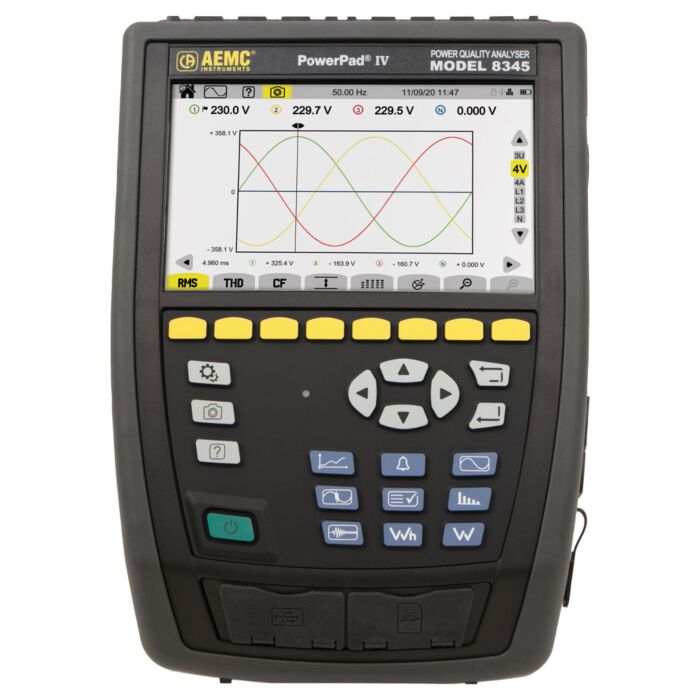

Real-time display of color waveforms (5 voltage/4 current) from 1 cycle to 10/12 cycles
Calculation of unbalance (current and voltage)
Automatic recognition of different current sensors
Capture shockwaves up to 12 kV with a resolution of 500 ns
Trend recording period from 200 ms to 2 hrs
RMS and Peak InRush for up to 30 mins
Display of phasor diagrams
Waveforms at 512 samples per cycle, with Min/Max 2.5 ?s
True InRush capabilities to study loads during setup
Parameterization with software for True RMS single-, two and three-phase measurements at 512 samples/cycle, plus DC
Records and stores hundreds of parameters in memory every 10/12 periods
Measurements and recordings accessible on 7 inch color touch screen display
True RMS voltage and current measurement
Measurements on all installation types: three-phase, Aron connection, etc.
Electrical network monitoring with setting of alarms
Fast transient events are captured and stored in memory
Communication options: Webserver, Wi-Fi, Ethernet and USB
Power W, VA and VAR (P, N, Q1, S and D) measurements
Measurement of energy values (total and per phase) with energy valuation
PF, DPF, CF and THD calculations and measurements
Calculation so Pst & Plt flicker and sliding Pst
Harmonics (amplitude/phase shift) from DC to the 63rd order
Inter-harmonic subgroups from 0 to the 62nd order
Calculations of K factor & FHL
2 carrier current frequencies monitored
Each Unit Includes
Meter
Extra-large tool bag
Internal carrying pouch
Hand strap
(4) MA193-24-BK sensors
USB cable
(5) 10 ft black voltage leads with alligator clips
(12) color-coded input ID markers
Power adapter (PA32ER) with US power cord
(2) 6 ft stackable leads
(2) 10 ft black voltage leads with alligator clips for power adapter PA32ER
