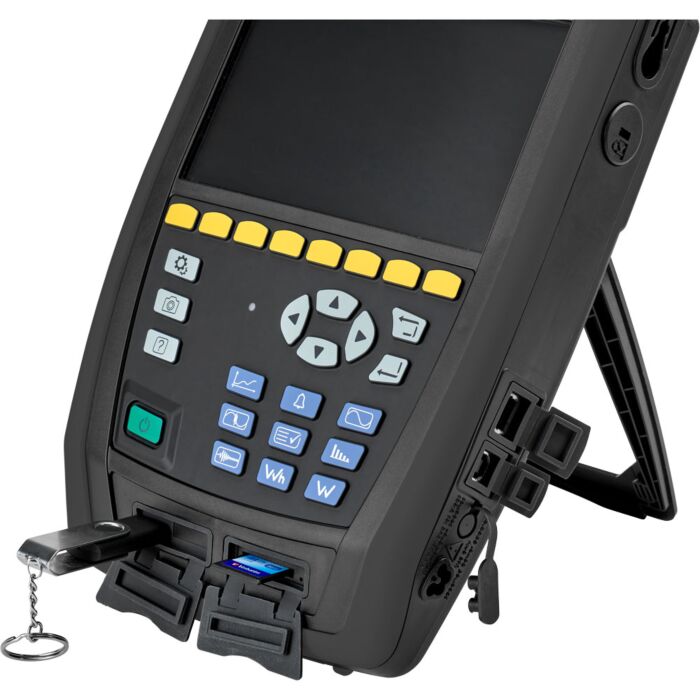

AEMC Instruments 8345 PowerPad IV (no probes)
PowerPad IV (no probes) Power Quality Analyzer

Order #: 2136.35

Mfg #: 2136.35

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $8,735.25 Regular Price $9,195.00

AEMC Instruments 8345 PowerPad IV (no probes)

PowerPad IV (no probes) Power Quality Analyzer

Order #: 2136.35

Mfg #: 2136.35

Special Price $8,735.25 Regular Price $9,195.00
Availability: Ships in 1-2 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

PowerPad IV (no probes)

  • Full compliance with IEC 61000-4-30 ed. 3.0 Class A functions
  • Voltage quality diagnostics
  • Real-time display of color waveforms (5 voltage/4 current) from 1 cycle to 10/12 cycles
  • Calculation of unbalance (current and voltage)
  • Automatic recognition of different current sensors
  • Capture shockwaves up to 12 kV with a resolution of 500 ns
  • Trend recording period from 200 ms to 2 hrs
  • RMS and Peak InRush for up to 30 mins
  • Display of phasor diagrams
  • Waveforms at 512 samples per cycle, with Min/Max 2.5 ?s
  • True InRush capabilities to study loads during setup
  • Parameterization with software for True RMS single-, two and three-phase measurements at 512 samples/cycle, plus DC
  • Records and stores hundreds of parameters in memory every 10/12 periods
  • Measurements and recordings accessible on 7 inch color touch screen display
  • True RMS voltage and current measurement
  • Measurements on all installation types: three-phase, Aron connection, etc.
  • Electrical network monitoring with setting of alarms
  • Fast transient events are captured and stored in memory
  • Communication options: Webserver, Wi-Fi, Ethernet and USB
  • Power W, VA and VAR (P, N, Q1, S and D) measurements
  • Measurement of energy values (total and per phase) with energy valuation
  • PF, DPF, CF and THD calculations and measurements
  • Calculation so Pst & Plt flicker and sliding Pst
  • Harmonics (amplitude/phase shift) from DC to the 63rd order
  • Inter-harmonic subgroups from 0 to the 62nd order
  • Calculations of K factor & FHL
  • 2 carrier current frequencies monitored

Each Unit Includes

  • Meter
  • Extra-large tool bag
  • Internal carrying pouch
  • Hand strap
  • USB cable
  • (5) 10 ft black voltage leads with alligator clips
  • (12) color-coded input ID markers
  • Power adapter (PA32ER) with US power cord
  • (2) 6 ft stackable leads
  • (2) 10 ft black voltage leads with alligator clips for power adapter PA32ER
  • (1) power plug adaptor for PA32ER
  • 5.8 Ah Li-ion battery pack
  • Quick start guide
  • USB stick with DataView® software
  • User manual
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
ELECTRICAL
Inputs 5 x voltage / 4 x current, isolated
Voltage 5 V to 1,000 VAC and VDC
Trend Recording > 900 parameters
Sampling Rate Voltage 400 kSps / Current 200 kSps / Surge 2 MSps
Alarm mode (types/number) Yes, 52 / 20,000 with Email notifications
Real-time mode Yes
Power Mode Yes
Energy Mode Yes
Unbalance Mode Composite
Harmonics Mode DC to 63rd order; < 3% Udin
Interharmonics Mode 0 to 62nd order; < 0.5% Udin
Carrier Current Detection Yes
Inrush Capture (number) No maximum (limited by SD card)
Transient Capture (number) No maximum (limited by SD card)
Shockwaves (Fast transient) Up to 12 kV sampled every 500 ns
Flicker (Pst) < 0,1
Voltage Unbalance (u0,u2) 0.5 to 5 % (absolute); µ0.15 % (absolute)
Screenshots No maximum (limited by SD card)
Power Supply Power from phase from 100 to 1000 V AC/DC with external supply block (included)
Battery Cartridge LI-ION - 5800 Ah battery pack (included) ≤6 hrs w/ display on; ≤10 hrs w/ display off
MECHANICAL
Data Storage 16 GB SD-Card (included) for snapshot, transients, alarms and trend recording
Display 7 in color LCD touch screen: 800 x 480 (WV GA)
Clock / GPS Yes, built-in
Operating Temperature 32 °F to 104 °F [+0 °C; +40 °C]
Communication USB, Ethernet, Wi-Fi, Web server, IRD server, USB stick port (type A)
Dimensions 7.87 in x 11.22 in x 2.17 in (200 mm x 285 mm x 55 mm)
Weight (meter only) 4.19 lbs (1.9 kg)
SAFETY & COMPLIANCE
Safety IEC 61010 1000 V CAT IV
Ingress Protection IP54
Environmental Compliance IEC 61557-12 & IEC 62586
Measurement Standard IEC 61000-4-30 (Ed 3) Class A (Full)
EN50160 Monitoring Mode With PAT3 software
Warranty *3 years (registration must be done within 30 days of the date of purchase)
