AEMC 6555 15kV Digital Megohmmeter

Product Highlights

The Megohmmeter Model 6555 is a high-end portable measuring instrument intended for the measurement of a wide variety of electrical insulation resistance values on cables and devices operating at high voltage. It is the only fully automated 15,000V graphical insulation tester. The True Megohmmeter® Model 6555 is packaged in a rugged case that is IP65 when closed. Test results and configuration information are displayed on a graphical LCD screen and are exportable via DataView® (provided). This megohmmeter can operate on battery or AC power.

The Model 6555 also offers the ability to program up to three step voltage profiles (from 40 to 15,000V), each containing up to ten steps. There are also three ramp profiles and three programmable test voltages in addition to the standard fixed voltages of 500, 1000, 2500, 5000, 10,000 and 15,000V.

Detection and measurement of input voltage, frequency, and current prior to running a test
Measurements at a fixed test voltage of 500, 1000, 2500, 5000, 10,000 or 15,000VDC
Measurements at an adjustable test voltage between 40 and 15,000VDC
Ramp voltage measurements with a ramp from 40 to 1100V or from 500 to 15,000V
Step voltage measurements with steps from 40 to 15,000V
Non-destructive (Early break) test, test stopped at a preset current (Break at I-limit) or Burn mode with no predefined stop point
Digital filtering of insulation measurements
Live measurement of the voltage to warn the operator of potential unsafe conditions
Programmable thresholds to trigger audible
Timed measurement duration checks
Fuse protection with display indication of defective fuse condition
Stores up to 80,000 measurements

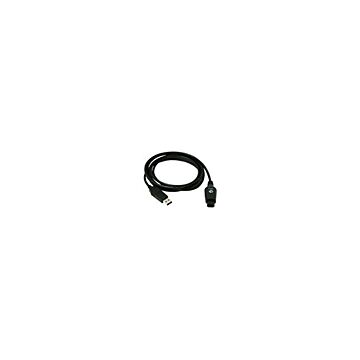

Optically-isolated USB communication for transfer onto PC and and report generation with the included DataView® software
