Overview

Product Highlights

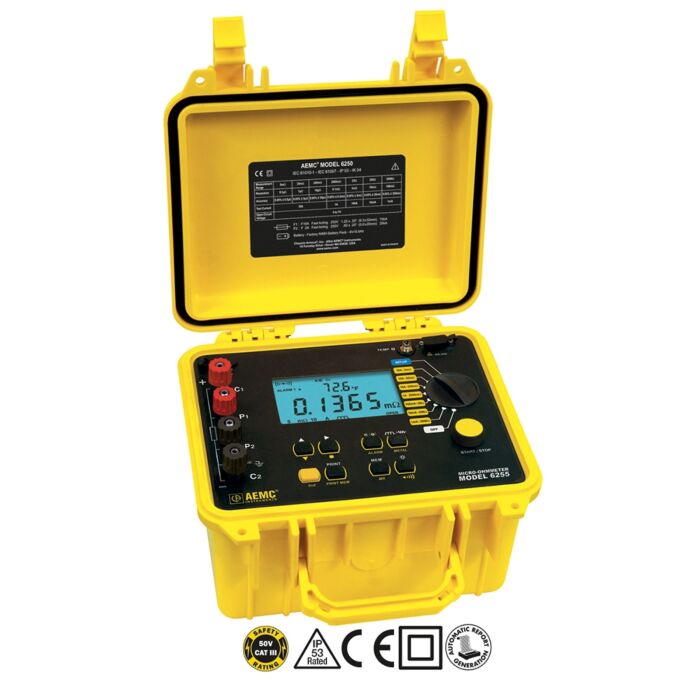

The 10A Micro-Ohmmeter Model 6255 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method, the Model 6255 is the most accurate Micro-Ohmmeter available, with results within 0.05%.

The Model 6255 is uniquely designed to conduct tests on both resistive and inductive material, with operator selection directly from the front panel. Three test modes are available; resistive (instantaneous test), inductive (continuous test), and auto (repetitive test). Up to 1500 measurements can be stored and printed directly to a printer from a PC.

  • Measure from 1µΩ (0.1µΩ resolution) to 2500.0Ω
  • Test current selection of 1mA, 10mA, 100mA, 1A and 10A
  • Tests up to 60 minutes at 10Amps
  • RTD temperature probe (optional)
  • Automatic and manual temperature correction
  • Two programmable alarm set points
  • Stores up to 1500 test results
  • Selectable inductive or resistive test modes
  • Automatic multiple test mode (multiple tests without pressing the test button)
  • Large multi-line electroluminescent display
  • Internal rechargeable batteries conduct up to 5000 – 10A tests
  • Rugged, double insulated waterproof case

Technical Resources

Specifications

Measurement Range
Range Resolution Accuracy @ 23°C±5°C Measurement Current Voltage Drop
5mOhm 0.1µOhm ±(0.15% +1.0µOhm) 10A 50mV
25mOhm 1µOhm ±(0.05% +3µOhm) 10A 250mV
250mOhm 10µOhm ±(0.05% +30µOhm) 10A 2500mV
2500mOhm 0.1mOhm ±(0.05% +0.3mOhm) 1A 2500mV
25Ohm 1mOhm ±(0.05% +3mOhm) 100mA 2500mV
250Ohm 10mOhm ±(0.05% +30mOhm) 10mA 2500mV
2500Ohm 100mOhm ±(0.05% +300mOhm) 1mA 2500mV
Temperature Measurement 3 wire 100Ohm platinum RTD
Accuracy ±0.5°C
Resolution 0.1°C
Selectable Metal Type Yes - Copper, Aluminum or Custom
Alarm Mode Yes - 2 Alarms with High-Low trigger
Storage Memory 1500 tests, supplied with DataView® software for download and reporting
Battery Rechargeable NIMH battery pack 6V, 8.5Ah
Battery Life: 10A 5000  tests typical
Battery Charger 120/240VAC ± 20% (45 to 400Hz)
Auto Power OFF When battery voltage <5.0V
Overload Protection 250Vrms
Dimensions (L x W x H) 10.70 x 9.76 x 7.18
